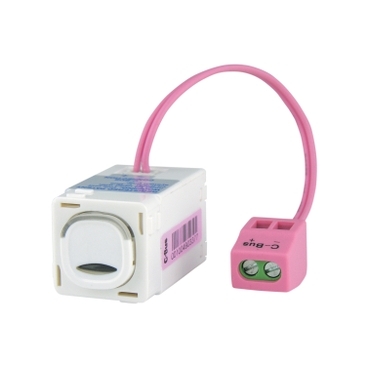

C-Bus 30 Series Master Push Button Mechanism inc. IR receiver

1 PCE 1

Qty	UoM	EAN	Colour
			-
			-
			-

Qty	UoM	EAN	Colour
1	PCE	9311554705930	-
160	CAR	19311554705937	-

Specifications

Range of product	Series 30M
Product brand	Clipsal
Product or component type	IR capable master mechanism

Range compatibility	C-Bus
Device mounting	wall mounted by Series 30M grid
[ue] rated operational voltage	15...36 V DC
Local signalling	LED (blue/orange) for status
Type of cable	twisted unshielded pairs cable category 5e
Communication network type	C-Bus
Relative humidity	10...95 % non-condensing
Reach free of svhc	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1207002EN
Eu rohs directive	Compliant By Exemption

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Input impedance	100 kOhm at 1-1 kHz
Isolation voltage	3.75 kV from C-Bus to mains
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.8 cm
Package 1 width	6.4 cm
Package 1 length	10 cm
Package 1 weight	54 g
Sustainable packaging	No
End of life manual availability	ENVEOLI1207002EN
Warranty (in months)	18
