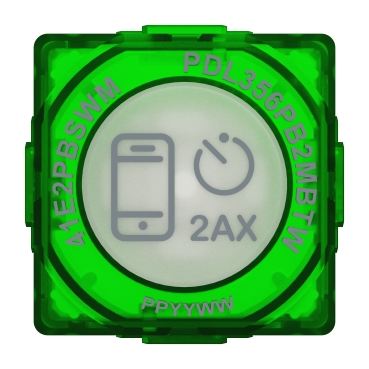

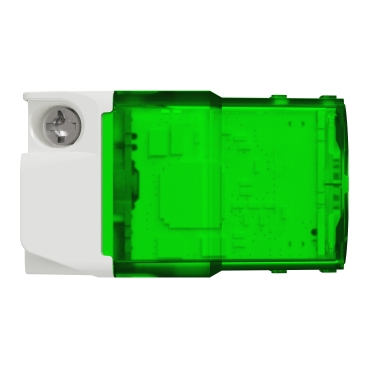

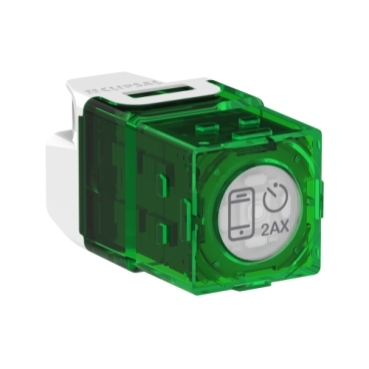

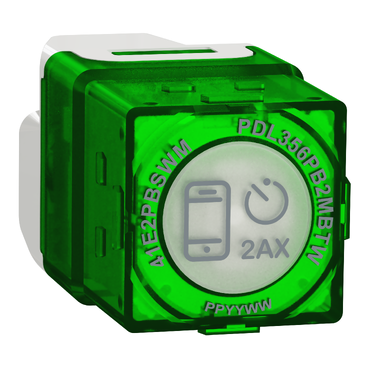

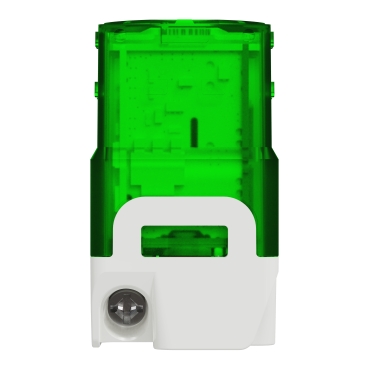

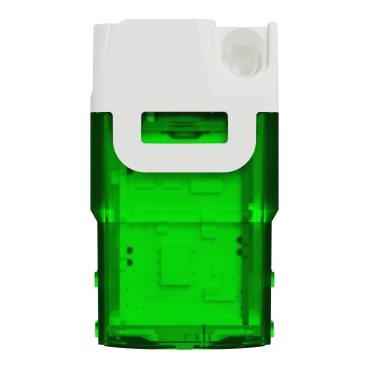

Iconic Wiser Connected Smart Switch BLE Default 2AX 240V, 300 Series | Vivid White

Item Number: PDL356PB2MBTW-VW

The Iconic Push Button Wiser 2AX Connected Smart Switch Module offers flexible installation options and is ideal for controlling lighting and exhaust fans. In default BLE Mode, the 2AX Connected Switch Mechanism gives you 1s- 24hr timer and run-on timer functions. Use the wall switch, or via the Wiser by SE app with Bluetooth Low Energy (BLE).

Datasheet

Product Dimensions

Width icon

Width22 mm

Height icon

Height22 mm

Embedding depth icon

Embedding depth40 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

PDL

Range

Iconic

Product or component type

connected switch

Colour tint

vivid white (VW)

Surface finish

glossy

Physical

Device presentation

mechanism

Number of rocker

1

Actuator

push-button

Load type

  • dimmable LED lighting driver: 2 A
  • LED lighting driver (non-dimmable): 2 A
  • electronic transformer: 2 A
  • medium voltage halogen lamp: 2 A
  • linear fluorescent ballast: 2 A
  • inductive: 2 A (cos phi =0.6 )
  • resistive: 2 A
  • motor: 1 A

[ue] rated operational voltage

220...240 V AC 50 Hz

Protection type

  • over temperature protection
  • thermal protection

Local signalling

LED

Control type

  • push-button
  • by mobile application

Communication network type

wireless (2.4-2.4 GHz), 2.5 mW at < 50 m

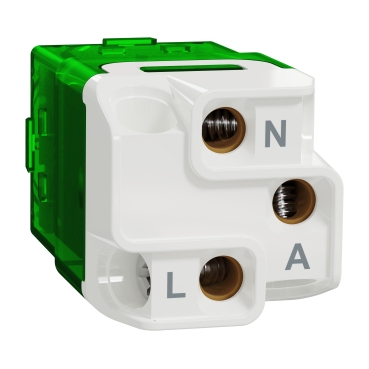

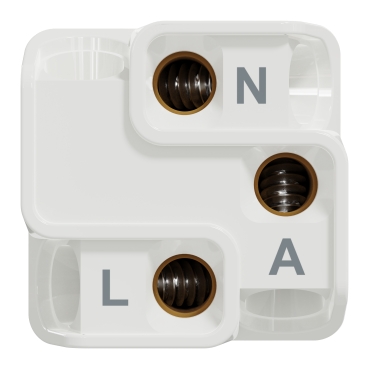

Wiring configuration

3-wire

Mounting support

grid

Device mounting

flush

Fixing mode

clip-in

Fixing center

84 mm

Type of installation

indoor installation

Embedding depth

40 mm

Depth

56 mm

Width

22 mm

Height

22 mm

Ip degree of protection

IP20

Relative humidity

5...90 % non-condensing

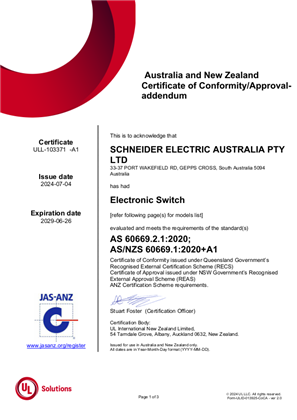

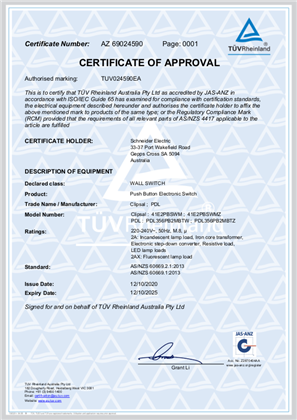

Standards

  • AS/NZS 60669.2.1 safety
  • AS/NZS 60669.2.1 EMC
  • AS/NZS 4268 radio

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

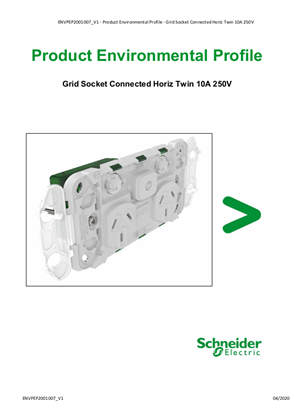

Environmental disclosure

ENVPEP2001007EN

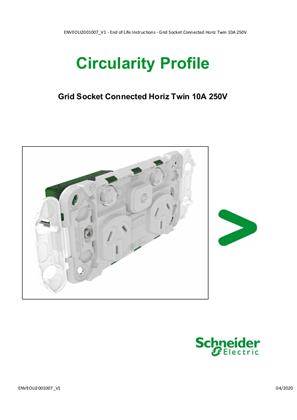

Circularity profile

ENVEOLI2001007EN

Material

Material

plastic

Others

Package 1 bare product quantity

1

Concentrator compatibility

Wiser hub generation 1

Mobile app name

Wiser by SE

Technology type

electronic

Software name

Wiser App

Technology type

  • bluetooth low energy default
  • Zigbee

Main colour tint

vivid white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.4 cm

Package 1 width

2.4 cm

Package 1 length

4.1 cm

Package 1 weight

52.0 g

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Green premium status for reporting

Green Premium product

Sustainable packaging

Yes

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.7716311618125569

Global warming ; total life cycle​

1 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications

Frequently Asked Questions

How do I convert Iconic Wiser™ Connected Switches or Dimmers from Zigbee to BLE

Hide Show

See below video

What is the Standby Power of my Wiser devices?

Hide Show
Wiser Micro Module Switch - CLP5011WSZ/PDL5011WSZ - 0.4 W
Wiser Micro Module Dimmer - CLP5010WDZ/PDL5010WDZ - 0.4 W
Wiser Micro Module Blind - CLP5015WBZ/PDL5015WBZ - 0.4 W
Wiser Hub - CLP501902/PDL501902 - 0.2 W
Bluetooth 2AX - 41E2PBSWM-VW/PDL356PB2MBTW-VW - 0.25 W
Bluetooth 10AX - 41E10PBSWM-VW/PDL356PB10MBTW-VW - 0.20 W
Bluetooth Dimmer - 41EPBDWCLM-VW/PDL354PBDMBTW-VW - 0.50 W
Bluetooth Socket - 3025CSG/PDL395CSG - 0.30 W
ZigBee 2AX - 41E2PBSWMZ-VW/PDL356PB2MBTZ-VW - 0.25 W
ZigBee 10AX - 41E10PBSWMZ-VW/PDL356PB10MBTZ-VW - 0.20 W
ZigBee Dimmer - 41EPBDWCLMZ-VW/PDL354PBDMBTZ-VW - 0.50 W
ZigBee Socket - 3025CSGZ/PDL395CSGZ - 0.30 W

Why do I need to update my Iconic Bluetooth devices and why should I change to the Wiser by SE App?

Hide Show
It is highly recommended to update your Bluetooth devices to the latest firmware, this will ensure compatibility with the new Wiser by SE App. For Wiser compatible Bluetooth devices the firmware update will also allow them to be swapped into Zigbee mode. The Wiser by SE App provides enhanced security features, the ability to create and manage homes, the ability to use the Wiser Hub and create a Zigbee network with your Iconic Zigbee devices. Connecting with the Wiser Hub allows control from outside of your home as well as voice control, moments(scenes) and automation functions. Updating your App will give you access to the latest features available within the Iconic Wiser product range.

I am getting a message in Wiser by SE ‘Network Unavailable. Please check your phones network settings’ what does this mean for my control of the products?

Hide Show
This message occurs when there is no mobile data connection or a WiFi connection to your device. When this occurs, you will still be able to connect to your Bluetooth switches/dimmers as these just require Bluetooth to be enabled on your device. It will prevent access/control of Zigbee devices and IP Cameras as this requires access to the cloud/internet. Via WiFi, without internet, you may still get control of the Zigbee switches/dimmers but not the IP Cameras.
