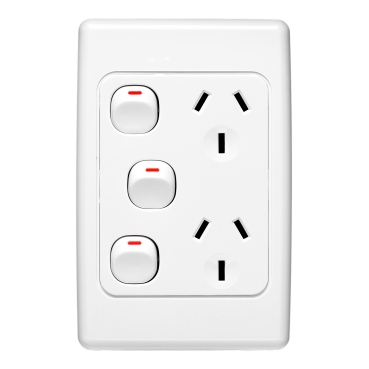

2000 Series Twin Switch Socket Outlet 250V, 10A, Vertical, Removable Extra Switch | White Electric
Item Number: 2025VXA-WE
Datasheet
Close
Specifications
Design
| Range of product | Series 2000 |
|---|---|
| Product or component type | switched socket |
| Product brand | Clipsal |
| Surface finish | glossy |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 2 gangs |
| Pin number | 3 |
| Number of power socket outlets | 2 |
| Actuator |
|
| Fixing mode | by screws |
| Local signalling | without light indicator |
| Mounting position | vertical |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Depth | 28 mm |
| Length | 116 mm |
| Width | 76 mm |
| Fixing center | 84 mm |
| Standards |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | plastic |
|---|
Documents & downloads
Filter items
-
All
-
BIM Model
-
CAD Files and Packs
-
Product Brochures
-
Technical Data Catalogues
-

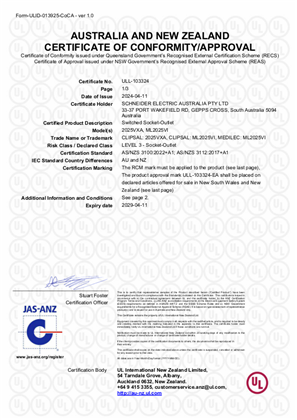

Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
