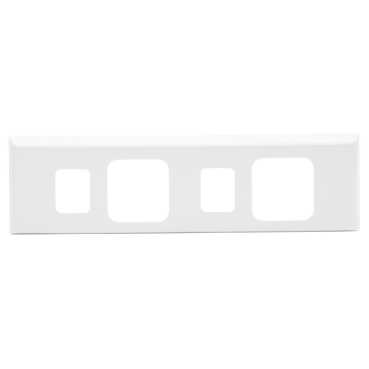

600 Series Cover Plate Double Switched Socket Worktop Twin Base, 10A | White
Item Number: PDL699TBCWH
Datasheet
Close
Specifications
Design
Range of product
600 Series
Product or component type
cover plate
Colour tint
white
Product destination
1 gang horizontal switched socket
Surface finish
gloss
Physical
Quantity per set
set of 10
Type of packing
carton
Installation direction
horizontal
Length
167 mm
Height
45 mm
Mounting mode
surface mounted
Ambient air temperature for operation
-10...40 °C
Toxic heavy metal free
Yes
Mercury free
Yes
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Not applicable, out of EU RoHS legal scope
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
PC (polycarbonate)
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Dimension type
external
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
19.8 g
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
