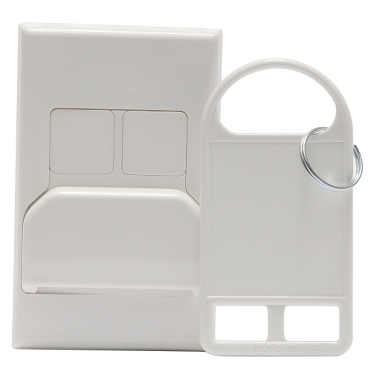

600 Series, Hospitality Card Switch, with Neon, Vertical, 20A/16AX/M60, 240V

Home ProductsSwitches and Sockets600 SeriesHospitality Card Switch

600 Series, Hospitality Card Switch, with Neon, Vertical, 20A/16AX/M60, 240V

Item Number: PDL626N

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Sustainable offer status

Green Premium product

Physical

Control type

switch

Installation direction

vertical

Length

118 mm

Height

74 mm

Rated current

20 A|16 AX

[ue] rated operational voltage

230/250 V

Number of gangs

1 gang

Number of poles

2

Mounting mode

surface mounted

Fixing center

84 mm

Ambient air temperature for operation

-10...40 °C

Quantity per set

set of 5

Type of packing

carton

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network frequency

50 Hz

Network number of phases

1 phase

Cable cross section

2 x 2.5...2.5 mm²|4 x 1.5...1.5 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.5 cm

Package 1 width

7.5 cm

Package 1 length

12 cm

Package 1 weight

0.107 kg
Show all specifications
