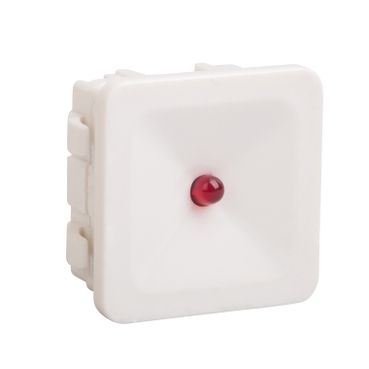

600 Series Module Illuminated, Small Red LED, 20mA, 24VDC | Red
Item Number: PDL610TML24RD
Datasheet
Close
Specifications
Design
Range of product
600 Series
Product or component type
switch
Surface finish
opaque
Physical
Installation direction
vertical
Length
21 mm
Width
20 mm
Depth
9.3 mm
[ue] rated operational voltage
24 V
Number of gangs
1 gang
Mounting mode
front
Number of terminals
2
Quantity per set
set of 20
Type of packing
crate
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PC (polycarbonate)
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Light source colour
red
Network number of phases
1 phase
Cut-out dimensions
25 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.1 cm
Package 1 width
2 cm
Package 1 length
0.9 cm
Package 1 weight
0.004 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
