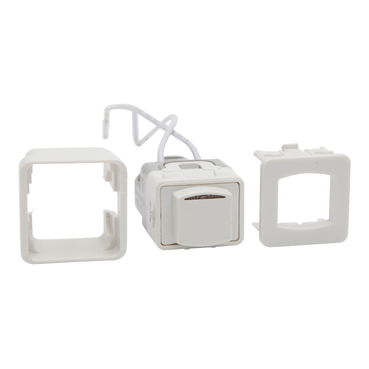

600 Series Module Pushbutton Momentary Switch 10A | White

Item Number: PDL681MT10PBWH

White 1 PCE 1

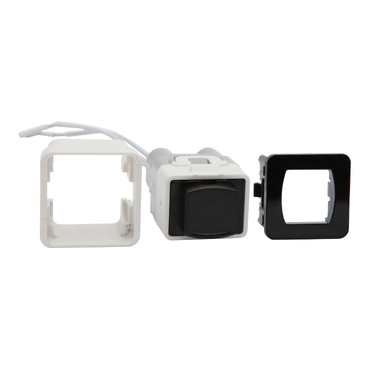

Black 1 PCE 1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175232367	WH
10	BB1	9416175259708	WH
80	CAR	19416175232364	WH
1	PCE	9416175232374	BK
10	CRT	9416175259661	BK
30	CAR	19416175232371	BK

Specifications

Design

Range of product	600 Series
Product or component type	switch
Surface finish	gloss

Physical

Control type	push-button
Installation direction	vertical horizontal
Rated current	16 AX 20 A
[ue] rated operational voltage	24 V 250 V
Number of poles	1
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120809EN
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Network type	AC DC
Motor m-rating as3133	M50
Cable cross section	2 x 2.5...2.5 mm² 4 x 1.5...1.5 mm²
Main colour tint	white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.5 cm
Package 1 width	8 cm
Package 1 length	10.5 cm
Package 1 weight	26 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.13901805228598707
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.007795811564558727
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00477239394059983
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.4192
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.06373474216935296
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	3.6345209999604986
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
