600 Series Module Switch 32A 20AX 1P HOB

600 Series Module Switch 32A 20AX 1P HOB | White

Item Number: PDL680M32HWH

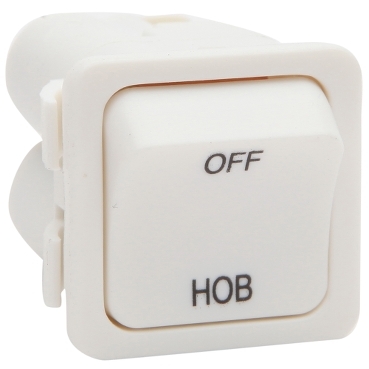

Switch mechanism for 1-gang installations. Single-pole switch. Switch is marked HOB-OFF. 600 Series mechanism. Suitable for PDL 600. Colour: White Rated current: 32A / 20AX. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Physical

Control type

rocker

Installation direction

vertical

Length

23 mm

Width

23 mm

Rated current

  • 32 A
  • 20 AX

[ue] rated operational voltage

250 V

Number of gangs

1 gang

Number of poles

1

Mounting mode

front

Ambient air temperature for operation

-10...40 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1607003EN

Circularity profile

N/A

Material

Material

PA (polyamide)

Others

Package 1 bare product quantity

1

Network type

AC

Motor m-rating as3133

M180

Cable cross section

2 x 6 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.5 cm

Package 1 width

2.5 cm

Package 1 length

2.5 cm

Package 1 weight

19.385 g

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

3.353897199960001
