600 Series RCD Protected Shaver Socket 10A, 30mA, Trip | White
Item Number: PDL675HRCD30WH
Datasheet
Close
Specifications
Design
Range of product
600 Series
Product or component type
shaver socket-outlet insert
Colour tint
white
Surface finish
gloss
Physical
Installation direction
horizontal
Width
145 mm
Height
118 mm
[ue] rated operational voltage
240 V
Number of poles
2
Mounting mode
surface mounted
Fixing center
84 mm
Quantity per set
set of 1
Type of packing
carton
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
PC (polycarbonate)
Others
Package 1 bare product quantity
1
Network frequency
50 Hz
Network number of phases
1 phase
Cable cross section
3 x 2.5...2.5 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8 cm
Package 1 width
12 cm
Package 1 length
19 cm
Package 1 weight
1.147 kg
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-

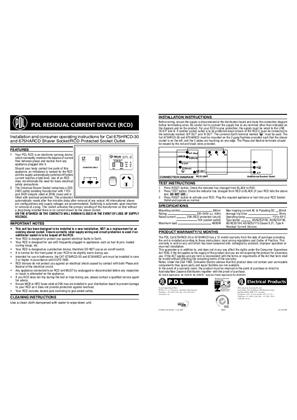

Operating Manuals
