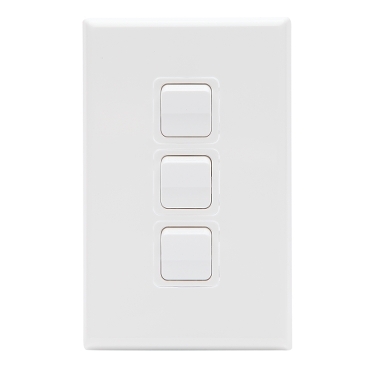

600 Series Switch 20A 16AX 3-Gang

600 Series Switch 20A 16AX 3-Gang | WH

Item Number: PDL683WH

Switch assembly. 600 series cover plate, grid and switch mechanism are included. Assembled with plate. PDL 600. Colour: White Rated current: 20A / 16AX. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Physical

Control type

rocker

Installation direction

vertical

Length

118 mm

Width

74 mm

Rated current

20 A|16 AX

[ue] rated operational voltage

250 V

Number of gangs

3 gangs

Number of poles

1

Mounting mode

surface mounted

Fixing center

84 mm

Ambient air temperature for operation

-10...40 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network type

AC

Motor m-rating as3133

M60

Cable cross section

2 x 2.5...2.5 mm²|4 x 1.5...1.5 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

7.5 cm

Package 1 length

11.5 cm

Package 1 weight

91 g
