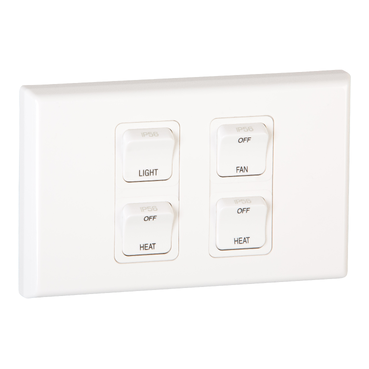

600 Series Switch 4-Gang Horizontal Dedicated Weatherproof | White
Item Number: PDL684HWPDWH
Datasheet
Close
Specifications
Design
| Range of product | 600 Series |
|---|---|
| Product or component type | switch |
| Colour tint | white |
| Surface finish | gloss |
Physical
| Control type | rocker |
|---|---|
| Installation direction | horizontal |
| Length | 118 mm |
| Width | 74 mm |
| Rated current |
|
| [ue] rated operational voltage | 250 V |
| Number of gangs | 4 gangs |
| Number of poles | 1 |
| Mounting mode | surface mounted |
| Fixing center | 84 mm |
| Ambient air temperature for operation | -10...40 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
