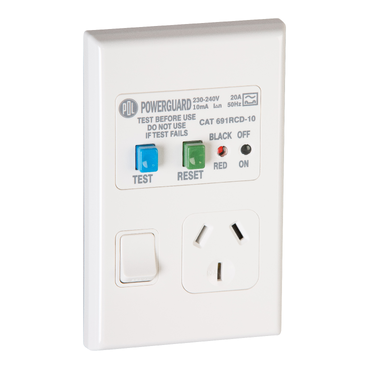

600 Series Switched Socket 10A RCD 10mA Trip | White

Item Number: PDL691RCD10WH

White 1 PCE 1

Socket outlet assembly for vertical installations. Single switched socket with RCD protection. 600 Series cover and socket grid are included. PDL 600. Colour: White Rated current: 10A Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175106385	WH

Specifications

Design

Range of product	600 Series
Product or component type	residual current device
Surface finish	gloss

Physical

Control type	push-button
Installation direction	vertical
Width	74 mm
Height	118 mm
Rated current	10 A
[ue] rated operational voltage	230/240 V
Number of poles	2
Mounting mode	surface mounted
Fixing center	84 mm
Quantity per set	set of 1
Type of packing	carton
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1607004_V2-EN
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee applicability	Finished product
Weee label	N/A
Warranty duration(in months) bmecat	18
Network frequency	50 Hz
Network number of phases	1 phase
Cable cross section	3 x 2.5...2.5 mm²
Main colour tint	white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.0 cm
Package 1 width	7.5 cm
Package 1 length	12.0 cm
Package 1 weight	0.222 kg
Total lifecycle carbon footprint	12 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.7689476627352867
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.06365057197710762
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.04514095443432421
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	9.4106
Carbon footprint of the use phase [b2, b3, b4, b6]	9 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.5208724915125001
Carbon footprint of the end-of-life phase [c1 to c4]	0.5 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	11.80921168065922
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
Take-back	No
Warranty (in months)	18
