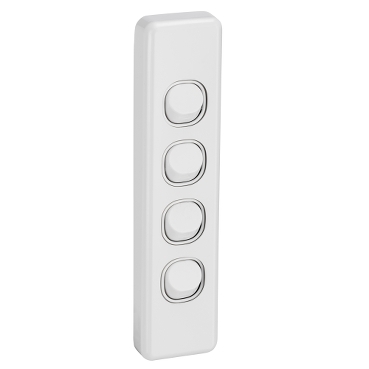

C2000 Series Switch Assembled, Architrave, 4-gang, 250V, 10AX | White Electric
Item Number: C2034A-WE
Switch assembly. C2000 grid, cover plate and switch mechanism are included. Suitable for 4-gang architrave installations. Assembled with plate. Clipsal C2000. Colour: White Electric Rated current: 10AX. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Datasheet
Specifications
Design
| Range of product | Classic Series C2000 |
|---|---|
| Product brand | Clipsal |
Physical
| Device presentation | basic element with full cover plate and grid |
|---|---|
| Device mounting | flush |
| Number of rocker | 4 |
| Local signalling | without |
| [ue] rated operational voltage | 250 V AC |
| Rated current | 10 A |
| Marking | without marking |
| Fixing mode | by screws |
| Actuator | rocker |
| Standards | AS/NZS 60669.1 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
