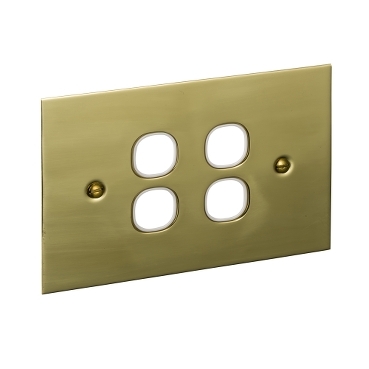

Metal Plate Switch Grid Plate and Cover 4 Gang, BBSL Style, Less Mechanism, Over Size | White Electric
Item Number: BBSL34VH-WE
Datasheet
Close
Specifications
Design
| Range | Metal Plate |
|---|---|
| Product brand | Clipsal |
| Product or component type | grid plate |
| Product destination | switch |
Physical
| Provided equipment | grid plate |
|---|---|
| Quantity per set | set of 1 |
| Range compatibility | Metal Plate switch |
| Fixing mode | by screws |
| Marking | without marking |
| Mounting position | horizontal and vertical |
| Fixing center | 84 mm |
| Length | 130 mm |
| Width | 85 mm |
| Depth | 8.7 mm |
| Number of gangs | 4 gangs |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2108010_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | brass |
|---|
