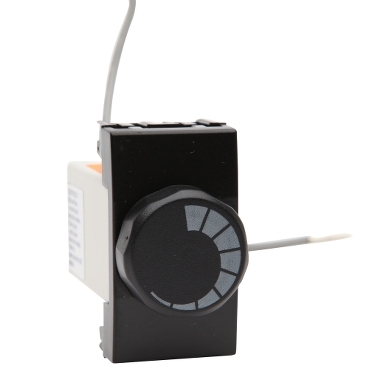

Modena and Strato 800 Series Modular Fan Speed Controller Module 230-240VAC Switch, 50 Hz | Black
Item Number: PDL825FMBK
Datasheet
Close
Specifications
Design
| Range of product | Modena 800 Series |
|---|---|
| Product or component type | fan controller |
| Colour tint | white |
| Surface finish | matt |
Physical
| Control type | rotary knob |
|---|---|
| Installation direction |
|
| Width | 25 mm |
| Height | 45 mm |
| Rated current | 16 AX |
| [ue] rated operational voltage | 230/250 V |
| Load type | 40...500 W 0.16...2 A for motor |
| Number of gangs | 1 gang |
| Mounting mode | front |
| Quantity per set | set of 10 |
| Type of packing | plastic bag and carton |
| Eu rohs directive | Compliant |
Material
| Material | PC (polycarbonate) |
|---|
