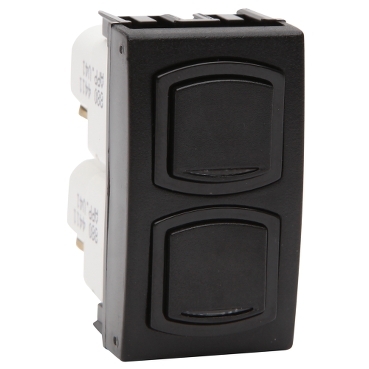

Modena and Strato 800 Series Push Button Switch Module Blue LED, 16A/16AX/10A, 2 Gang, 1P | Black
Item Number: PDL880TPB2BK
Datasheet
Close
Specifications
Design
| Range of product | Modena 800 Series |
|---|---|
| Product or component type | switch module |
| Colour tint | white |
| Surface finish | matt |
Physical
| Control type | push-button |
|---|---|
| Quantity per set | set of 5 |
| Type of packing | carton |
| Installation direction |
|
| Width | 25 mm |
| Height | 45 mm |
| Rated current |
|
| [ue] rated operational voltage |
|
| Number of gangs | 2 gangs |
| Mounting mode | front |
| Connector type | #1 Square Head/#2 Phillips Screw |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
