Modena and Strato 800 Series Vertical Switch Module 16A/16AX, 250VAC, 50 Hz, 1-Gang, 1P, 2-Way | White
Item Number: PDL881M16VWH
Datasheet
Close
Specifications
Design
| Range of product | Modena 800 Series |
|---|---|
| Product or component type | switch module |
| Colour tint | white |
| Surface finish | matt |
Physical
| Control type | rocker |
|---|---|
| Quantity per set | set of 10 |
| Type of packing | carton |
| Installation direction |
|
| Width | 49.8 mm |
| Height | 44.6 mm |
| Rated current |
|
| [ue] rated operational voltage | 250 V |
| Mounting mode | front |
| Connector type | #1 Square Head/#2 Phillips Screw |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
Documents & downloads
Filter items
-
All
-
Product Brochures
-
Quick Start Guide
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
ZIP

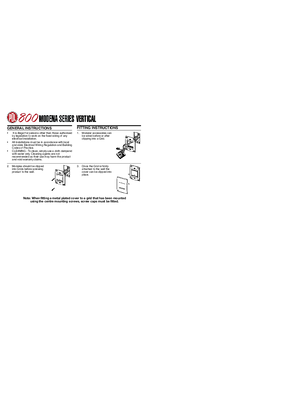

Modena 800 Series and Strato 800 Series installation instructions for vertically mounted products
