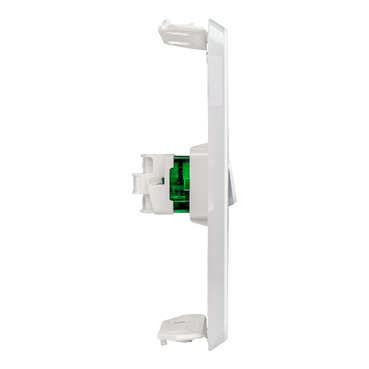

Iconic Bulk Pack 50 x Switch 1-Gang Vertical 20A | Vivid White
Item Number: PDL381BLK50-VW
This Iconic switch is vivid white in color. Its symbol rated current is 20A and 16AX. Its matching mounting box can be recessed into the surface of the wall with flush type. It has 1 rocker. It is a 1/2-way switch. This Iconic switch is vivid white in color. Its symbol rated current is 20A and 16AX. Its matching mounting box can be recessed into the surface of the wall with flush type. It has 1 rocker. It is a 1/2-way switch.
Specifications
Design
| Product brand | PDL |
|---|---|
| Range | Iconic |
| Product or component type | switch |
| Device application | switching loads |
| Aesthetic name | Iconic |
| Colour tint | vivid white |
| Surface treatment | untreated |
| Surface finish | matt |
Physical
| Number of rocker | 1 |
|---|---|
| Switch function | 1/2-way |
| Installation direction | vertical |
| Device presentation | complete product |
| Device mounting | flush |
| Actuator | rocker |
| [ue] rated operational voltage | 230/240 V |
| Rated current | 10 AX |
| Local signalling | without light indicator |
| Connections - terminals | screw terminals |
| Fixing mode | by screws |
| Width | 78 mm |
| Height | 116 mm |
| Depth | 38 mm |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607003EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
