Iconic Grid Double Switched Socket 10A Horizontal 250V

Item Number: PDL395G

The PDL Iconic Twin Switch Power Point Grid provides safety features on both Power Points with their internal shutters that protect against dust and moisture.

Datasheet

Product Dimensions

Width icon

Width115 mm

Height icon

Height71 mm

Depth icon

Depth26 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Product or component type

switched socket

Physical

Type of packing

polybag

Quantity per set

set of 10

Device presentation

mechanism with fixing frame

Device mounting

flush

Installation direction

horizontal

Number of rocker

2

Fixing mode

by screw

Clamping connection capacity

  • 1 x 2.5...4 x 2.5 mm² for rigid cable(s)
  • 1 x 2.5...4 x 2.5 mm² for stranded cable(s)
  • 1 x 2.5...4 x 2.5 mm² for flexible cable(s)

Wire stripping length

16 mm

Height

71 mm

Width

115 mm

Depth

26 mm

Net weight

0.096 kg

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1607004EN

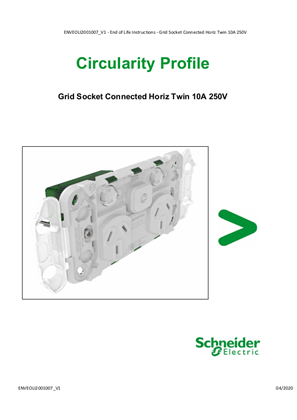

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Main colour tint

white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.1 cm

Package 1 width

7.1 cm

Package 1 length

7.1 cm

Package 1 weight

71 g

Green premium status for reporting

Green Premium product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

10.17772356

Global warming ; total life cycle​

10 kg CO2 eq.

Minimum percentage of recycled plastic content

0
