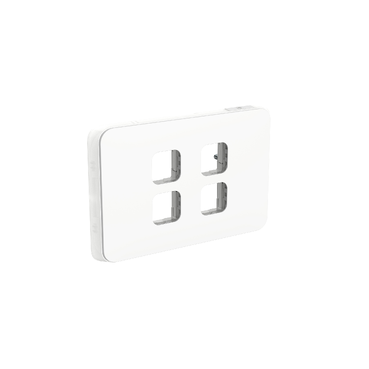

Iconic Grid + Skin Assembly 4-Gang

Iconic Grid + Skin Assembly 4-Gang | Vivid White

Item Number: PDL334GC-VW

Datasheet

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth17 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Product or component type

cover frame

Colour tint

vivid white (VW)

Surface finish

matt

Surface treatment

untreated

Physical

Type of packing

ziplock polybag

Quantity per set

set of 20

Number of rocker

4

Number of gangs

4 gangs horizontal/vertical 84 mm

Fixing mode

by screws

Height

120 mm

Width

78 mm

Depth

17 mm

Net weight

0.064 kg

Ambient air temperature for storage

0...60 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1607003EN

Circularity profile

N/A

Material

Material

  • PC (polycarbonate): grid plate
  • PP (polypropylene): flaps
  • POM (polyoxymethylene): locking bar

Others

Package 1 bare product quantity

1

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Main colour tint

vivid white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.9 cm

Package 1 width

7.8 cm

Package 1 length

5.8 cm

Package 1 weight

58 g

Green premium status for reporting

Green Premium product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.626664313

Global warming ; total life cycle​

1 kg CO2 eq.

Minimum percentage of recycled plastic content

0
