Iconic Module Intermediate Switch LED 10A 250V 1/2-Way, 300 Series

Home ProductsSwitches and SocketsPDL IconicModule Intermediate Switch

Iconic Module Intermediate Switch LED 10A 250V 1/2-Way, 300 Series

Item Number: PDL378M10L

The PDL Iconic Switch Mechanism is an intermediary light switch for multi-way switching capabilities (eg 3-way). It includes an LED light source for convenience and visibility and the wall switch mechanism is suitable for light management for smart home or commercial use.

Datasheet

Product Dimensions

Width icon

Width23 mm

Height icon

Height23 mm

Depth icon

Depth32 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

PDL

Range

Iconic

Product or component type

switch

Device application

lighting

Aesthetic name

Iconic

Colour tint

white

Surface treatment

untreated

Surface finish

matt

Physical

Number of rocker

1

Switch function

intermediate

Load type

  • fluorescent 10 A
  • LEDi lamp 100 W
  • inductive
  • light
  • fluorescent lamp

Quantity per set

set of 20

Device presentation

mechanism

Device mounting

flush

Actuator

rocker

[ue] rated operational voltage

250 V

Rated current

10 A

Local signalling

  • LED warm white optional
  • LED warm white for locator
  • LED warm white for indicator

Connections - terminals

screw terminals

Number of terminals

4

Clamping connection capacity

  • 1.5 mm² for stranded cable(s)
  • 1.5 mm² for flexible cable(s)
  • 1.5 mm² for rigid cable(s)

Fixing mode

by clipping locks

Width

23 mm

Height

23 mm

Depth

32 mm

Screwdriver shape

  • square drive no 1 (SQ1)
  • Philips No 2

Net weight

16 g

Wire stripping length

10 mm

Electrical durability

20000 cycles conforming to AS/NZS 60669

Ambient air temperature for storage

0...60 °C

Relative humidity

10...95 %

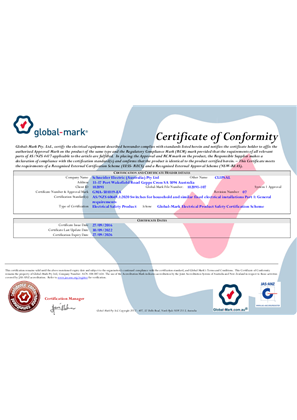

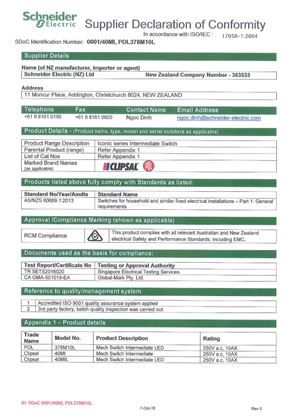

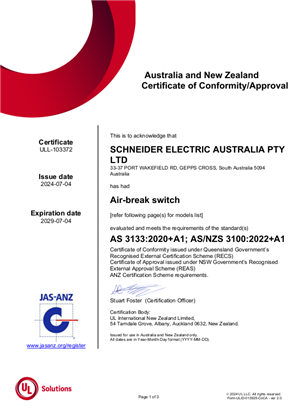

Product certifications

RCM

Ambient air temperature for operation

0...45 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1607003EN

Circularity profile

N/A

Material

Material

  • PC (polycarbonate): housing
  • PA66: housing

Others

Package 1 bare product quantity

1

Motor m-rating as3133

M80

Technology type

electromechanical

Network type

AC

Main colour tint

white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.3 cm

Package 1 width

2.3 cm

Package 1 length

2.3 cm

Package 1 weight

23 g

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Green premium status for reporting

Green Premium product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.33303067199166125

Global warming ; total life cycle​

1 kg CO2 eq.

Minimum percentage of recycled plastic content

0
