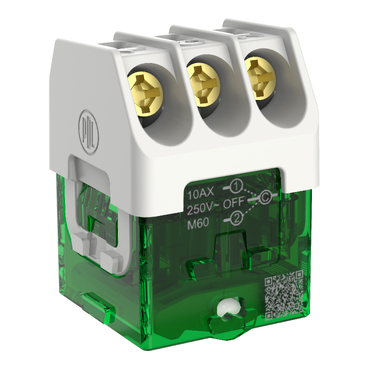

Iconic Module Toggle Switch 3-Position 10A 250V | Vivid White

Item Number: PDL387M3T-VW

Vivid White 1 PCE 1

With its M40 motor ratings, the PDL Iconic Switch Mechanism delivers versatile performance in any commercial or residential project. Its three-position toggle makes this wall switch a functional choice for most jobs.

Where To Buy

Datasheet

Download

Product Dimensions

Width23 mm

Height23 mm

Depth50 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175242045	VW

Specifications

Design

Product brand	PDL
Range	Iconic
Product or component type	switch
Device application	lighting
Aesthetic name	Iconic
Colour tint	vivid white
Surface treatment	untreated
Surface finish	matt

Physical

Number of rocker	1
Switch function	3 positions
Load type	serial boost load (SBL) 100 W light fluorescent lamp
Quantity per set	set of 20
Device presentation	mechanism
Device mounting	flush
Actuator	rocker
[ue] rated operational voltage	250 V
Rated current	10 A
Connections - terminals	screw terminals
Number of terminals	3
Clamping connection capacity	1.5 mm² for stranded cable(s) 1.5 mm² for flexible cable(s) 1.5 mm² for rigid cable(s)
Fixing mode	by clipping locks
Marking	ON-OFF-ON
Width	23 mm
Height	23 mm
Depth	50 mm
Screwdriver shape	square drive no 1 (SQ1) Philips No 2
Net weight	20 g
Wire stripping length	10 mm
Electrical durability	20000 cycles conforming to AS/NZS 60669
Ambient air temperature for storage	0...60 °C
Relative humidity	10...95 %

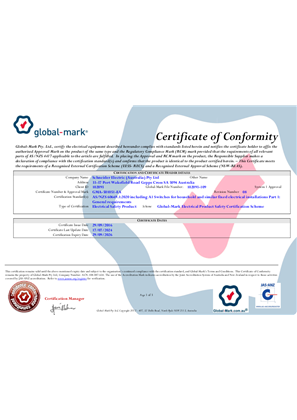

Product certifications	RCM
Ambient air temperature for operation	0...45 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes

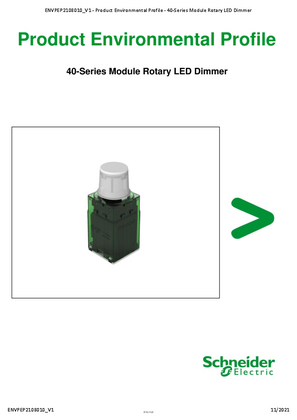

Environmental disclosure	ENVPEP2108010_V1
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate): dolly ABS (acrylonitrile butadiene-styrene): dolly

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Technology type	electromechanical
Network type	AC
Main colour tint	vivid white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.3 cm
Package 1 width	2.3 cm
Package 1 length	1.8 cm
Package 1 weight	18 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.0010582694300518137
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00000232240414507772
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	4.1860103626943e-7
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.65325
Carbon footprint of the use phase [b2, b3, b4, b6]	4 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.00000770860103626943
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.0022044444248704668
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	No

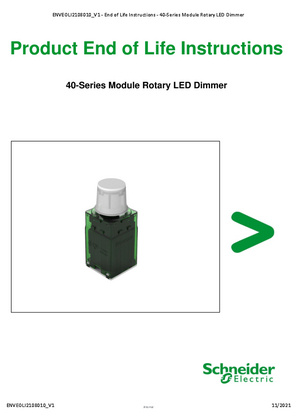

End of life manual availability	ENVEOLI2108010EN
Take-back	No
Warranty (in months)	18
