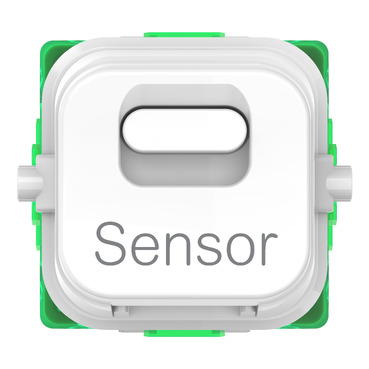

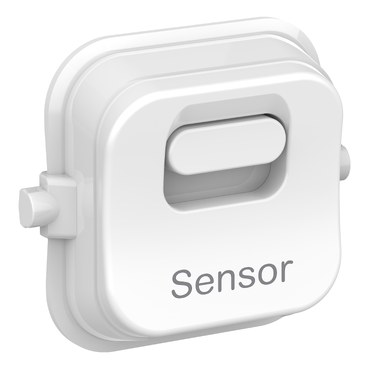

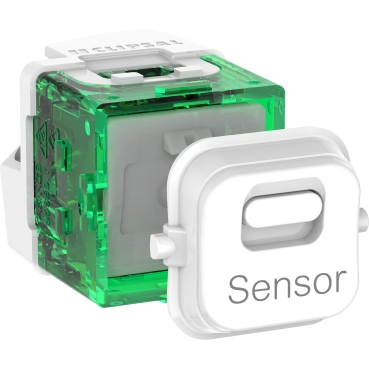

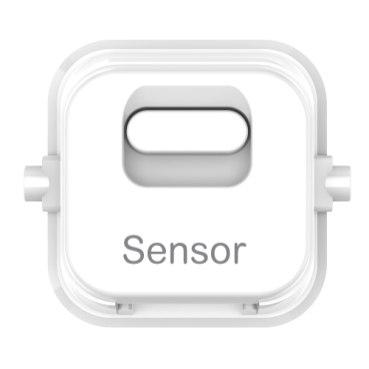

Pro Series Dolly Rocker Latch SENSOR, White

Pro Series Dolly Rocker Latch SENSOR, White | Extra Vivid White

Item Number: PDLP380ALRSENSR-XW

Latching rocker with 2 positions. PDL Pro Series. Colour: Extra White

Datasheet

Product Dimensions

Width icon

Width23 mm

Height icon

Height23 mm

Depth icon

Depth32 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Pro Series

Product or component type

switch

Device application

latched control

Colour tint

white

Surface finish

glossy

Surface treatment

untreated

Physical

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Type of packing

polybag

Quantity per set

set of 20

Device presentation

mechanism with central plate

Control type

rocker

Switch function

2 positions

Marking

sensor

Fixing mode

by clips

Connections - terminals

screw terminal

Clamping connection capacity

  • 1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s)
  • 3 x 2.5 mm² for stranded cable(s)
  • 1 x 4 mm² for stranded cable(s)

Height

23 mm

Width

23 mm

Depth

32 mm

Net weight

0.016 kg

Eu rohs directive

Under investigation

Material

Material

  • PC (polycarbonate)
  • PA66
  • ABS (acrylonitrile butadiene-styrene)

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.9 cm

Package 1 width

1.8 cm

Package 1 length

2.3 cm

Package 1 weight

18.0 g

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
