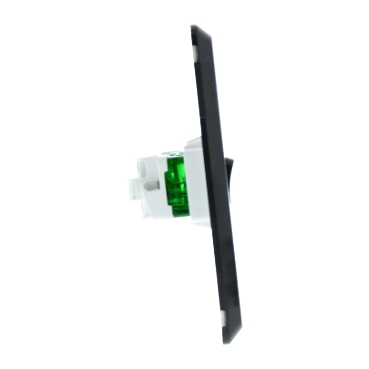

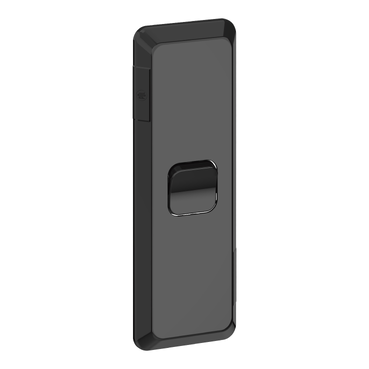

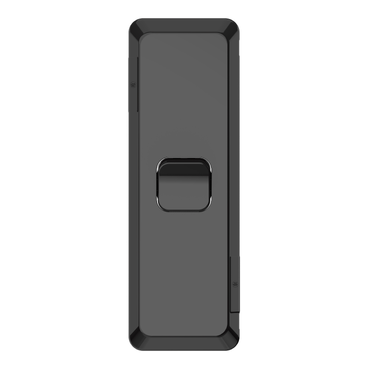

Pro Series Switch Architrave 1/2-Way 20A 16AX 1-Gang | Black
Item Number: PDLP361-BK
Switch assembly. Pro Series skin, grid and switch mechanism are included. Suitable for 1-gang architrave installations. Assembled with plate. PDL Pro Series. Colour: Black Rated current: 10AX. Operating voltage 230/240VAC 50Hz Note: Requires installation by an appropriately licenced electrician.
Specifications
Design
| Product brand | PDL |
|---|---|
| Range | Pro Series |
| Product or component type | switch |
| Surface treatment | untreated |
| Surface finish | glossy |
Physical
| Number of rocker | 1 |
|---|---|
| Installation direction | vertical |
| Quantity per set | set of 10 |
| Device presentation | complete product |
| Device mounting | wall |
| [ue] rated operational voltage | 230/240 V |
| Rated current | 20 A/16 AX |
| Clamping connection capacity |
|
| Fixing mode | by screws |
| Width | 38 mm |
| Height | 113 mm |
| Depth | 40 mm |
| Net weight | 0.048 kg |
| Relative humidity | 10...95 % |
| Ambient air temperature for operation | 0...45 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2108010_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
