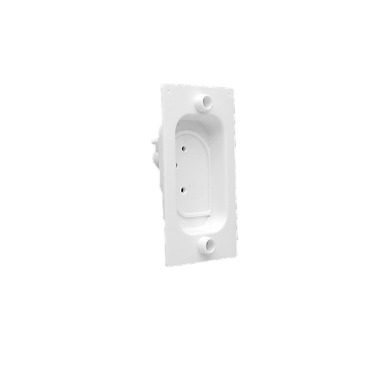

Standard Series Clock Point Recessed, 3 PIN, 250V, 50Hz

Standard Series Clock Point Recessed, 3 PIN, 250V, 50Hz | White Electric

Item Number: 408/3A-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Quantity per set

set of 1

Marking

without marking

Local signalling

without light indicator

Device mounting

flush

Fixing mode

by screws

[in] rated current

5 A

[ue] rated operational voltage

250 V AC

Depth

30 mm

Length

106 mm

Width

59 mm

Fixing center

84 mm

Number of poles

1

Standards

AS/NZS 3112|AS 3100|AS 3109|AS/NZS 3122:approval number S/1

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PVC (polyvinyl chloride)

Others

Package 1 bare product quantity

1

Cover type

full cover plate

Network frequency

50 Hz

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

5.9 cm

Package 1 length

10.6 cm

Package 1 weight

0.04 kg
Show all specifications
