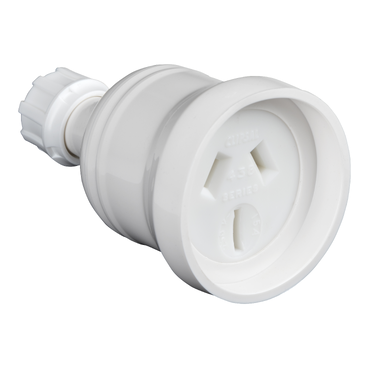

Standard Series Socket Cord Extension 8mm Shroud, 1.5sq, Heavy Duty, 15a

Home ProductsSwitches and SocketsStandard SeriesSocket Cord Extension

Standard Series Socket Cord Extension 8mm Shroud, 1.5sq, Heavy Duty, 15a | White Electric

Item Number: 438S15HD-WE

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Standard Series

Product or component type

socket-outlet

Product brand

Clipsal

Physical

Quantity per set

set of 1

Marking

without marking

Connections - terminals

screw terminals

Local signalling

without light indicator

[in] rated current

15 A

[ue] rated operational voltage

250 V AC

Depth

79 mm

Number of poles

1

Cable outer diameter

12 mm

Pin number

3

Standards

AS/NZS 3120:2011/A1

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PVC (polyvinyl chloride)

Device composition

flat pin

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Cover type

complete housing

Network frequency

50 Hz

Diameter

49 mm

Poles description

1P + N + E

Targeted country

  • New Zealand
  • Australia

Quality labels

RCM

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.9 cm

Package 1 width

4.9 cm

Package 1 length

7.9 cm

Package 1 weight

36.2 g

Total lifecycle carbon footprint

0 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0

Carbon footprint of the manufacturing phase [a1 to a3]

0 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

Take-back

No

Warranty (in months)

18
Show all specifications
