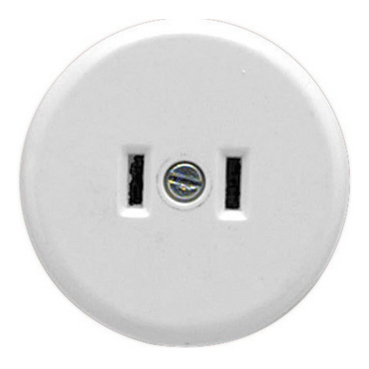

Standard Series, Socket Outlet, Single, 125VAC, 10A, 2 PIN ParAllel, Surface Mount

Home ProductsSwitches and SocketsStandard SeriesSocket Outlet

Standard Series, Socket Outlet, Single, 125VAC, 10A, 2 PIN ParAllel, Surface Mount White Electric

Item Number: 402-WE

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

socket-outlet

Product brand

Clipsal

Physical

Quantity per set

set of 1

Marking

without marking

Local signalling

without light indicator

Device mounting

surface

Fixing mode

by screws

[in] rated current

10 A

[ue] rated operational voltage

110 V AC

Depth

28 mm

Fixing center

28 mm

Number of poles

1

Standards

  • AS/NZS 3100
  • AS/NZS 3112
  • AS/NZS 3133
  • AS/NZS 3000:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

1

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Cover type

complete housing

Diameter

45 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.8 cm

Package 1 width

4.1 cm

Package 1 length

4.1 cm

Package 1 weight

32 g

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.34730507913854264

Global warming ; total life cycle​

1 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications
