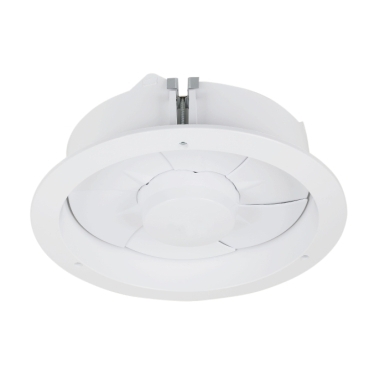

Airflow Performance Exhaust Fan Ceiling Mount, 254mm, Axial

Home ProductsVentilationAirflowPerformance Exhaust Fan

Airflow Performance Exhaust Fan Ceiling Mount, 254mm, Axial

Item Number: 6220-0

1 PCE 1

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9310276622006	-
6	CAR	9311554622008	-

Specifications

Design

Range of product	Airflow
Product brand	Clipsal

Physical

[ue] rated operational voltage	240 V AC
Power consumption in w	38 W
[in] rated current	0.17 A full load
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2302013_V2
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Air flow	800 m3/h
Diameter	254 mm impeller:
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	15.0 cm
Package 1 width	33.0 cm
Package 1 length	33.0 cm
Package 1 weight	2385.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	329 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	11.19694970898872
Carbon footprint of the manufacturing phase [a1 to a3]	11 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.6908536552881478
Carbon footprint of the distribution phase [a4]	0.7 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.667649434625681
Carbon footprint of the installation phase [a5]	0.7 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	311.39
Carbon footprint of the use phase [b2, b3, b4, b6]	311 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	5.076975480468283
Carbon footprint of the end-of-life phase [c1 to c4]	5 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	329.0224282793708
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Halogen-free status	Halogen free product
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Specification Guide
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Clipsal Residential Energy-Efficient Solutions

Clipsal Residential Energy-Efficient Solutions

VERSION

1.0

DATE

21 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 6.7 MB

Fans for all seasons … and reasons

Fans for all seasons … and reasons

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 861.7 KB

Energy Efficiency Trade Product Guide, 20742

Energy Efficiency Trade Product Guide, 20742

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.7 MB

Air Circulation Exhaust Fans and Ventilation Technical Data, 20897

Air Circulation Exhaust Fans and Ventilation Technical Data, 20897

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 6.4 MB

Fan Ceiling Exhaust 250mm

Fan Ceiling Exhaust 250mm

VERSION

1.0

DATE

02 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 269.5 KB

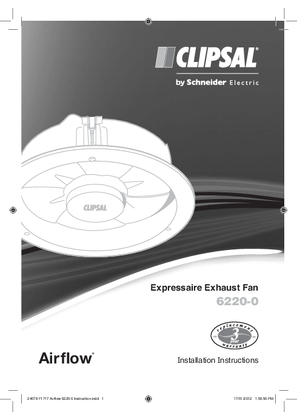

Installation Instructions - F1717 6220-0 Airflow Expressaire Exhaust Fan, 24078
