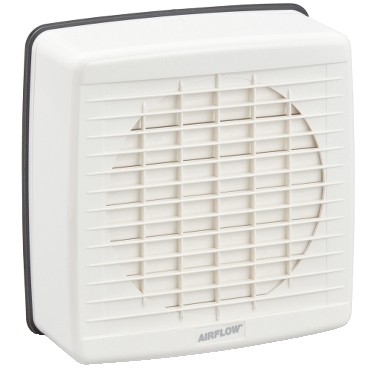

Airflow Performance Exhaust Fan Window Mount, 150mm, Pull Cord

Home ProductsVentilationAirflowPerformance Exhaust Fan

Airflow Performance Exhaust Fan Window Mount, 150mm, Pull Cord

Item Number: 7007A

1 PCE 1

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554561277	-
2	CAR	9311554609047	-

Specifications

Design

Range of product	MaxAir Airflow
Product brand	Clipsal

Physical

[ue] rated operational voltage	230...240 V AC
Power consumption in w	45 W
[in] rated current	0.27 A full load
Ip degree of protection	IPx4
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2302013_V2
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
Air flow	360 m3/h
Diameter	148 mm impeller:
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	20.5 cm
Package 1 width	24.5 cm
Package 1 length	24.5 cm
Package 1 weight	2324.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	329 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	10.910570701756724
Carbon footprint of the manufacturing phase [a1 to a3]	11 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.6731840230145306
Carbon footprint of the distribution phase [a4]	0.7 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.650573285563976
Carbon footprint of the installation phase [a5]	0.7 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	311.39
Carbon footprint of the use phase [b2, b3, b4, b6]	311 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	4.947124115978318
Carbon footprint of the end-of-life phase [c1 to c4]	5 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	328.57145212631355
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Halogen-free status	Halogen free product
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
