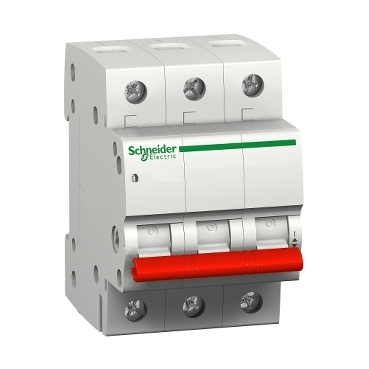

Domae Switch disconnector 63A 3-Pole 230VAC

Item Number: DCK12464

1 PCE 1

Product DCK12464 is replaced by R9S06391
View here.

Where To Buy

Datasheet

Download

Product Dimensions

Width54 mm

Height81 mm

Depth74 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480638374	-
4	BB1	13606480638371	-
48	S03	43606480638372	-

Specifications

Design

Range of product	Domae
Range	Domae
Product or component type	switch disconnector
Device application	switch

Physical

Standards	AS/NZS 60669.1 IEC 60068-1 IEC 60529 IEC 60669-2-4
[ie] rated operational current	63 A at 400 V AC 50/60 Hz
[ue] rated operational voltage	400 V AC 50/60 Hz
Control type	toggle
Local signalling	ON/OFF indication
Mounting mode	clip-on
Mounting support	DIN rail
Height	81 mm
Width	54 mm
Depth	74 mm
Net weight	230 g
Mechanical durability	50000 cycles
Electrical durability	20000 cycles
Connections - terminals	tunnel type terminals (top or bottom) - 1 x 1...1 x 35 mm² - rigid without cable end tunnel type terminals (top or bottom) - 1 x 1...1 x 35 mm² - flexible without cable end tunnel type terminals (top or bottom) - 2 x 1.5...2 x 16 mm² - rigid without cable end tunnel type terminals (top or bottom) - 2 x 1.5...2 x 16 mm² - flexible without cable end tunnel type terminals (top or bottom) - 1 x 1...1 x 35 mm² - rigid with cable end tunnel type terminals (top or bottom) - 1 x 1...1 x 35 mm² - flexible with cable end tunnel type terminals (top or bottom) - 2 x 1.5...2 x 16 mm² - rigid with cable end tunnel type terminals (top or bottom) - 2 x 1.5...2 x 16 mm² - flexible with cable end
Wire stripping length	14 mm
Ip degree of protection	IP20 conforming to IEC 60529
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-5...55 °C
Ambient air temperature for storage	-25...70 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP110309EN
Eu rohs directive	Compliant

Others

Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
Weee label	N/A
Weee applicability	Finished product
	Outside of Europe
Poles description	3P
Utilisation category	AC-22A conforming to IEC 60669-2-4
Network frequency	50/60 Hz
[icm] rated short-circuit making capacity	4.2 kA 400 V AC at 50/60 Hz
[icw] rated short-time withstand current	1260 A during 300 ms
[ui] rated insulation voltage	500 V AC 50/60 Hz
[uimp] rated impulse withstand voltage	6 kV conforming to IEC 60669-2-4
Contact position indicator	yes
9 mm pitches	6
Tightening torque	2.5...2.5 N.m
Tropicalisation	2 conforming to IEC 60068-1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.7 cm
Package 1 width	5.3 cm
Package 1 length	5.5 cm
Package 1 weight	0.26 kg
Unit type of package 2	BB1
Number of units in package 2	4
Package 2 height	8.0 cm
Package 2 width	9.0 cm
Package 2 length	22.8 cm
Package 2 weight	1.09 kg
Unit type of package 3	S03
Number of units in package 3	48
Package 3 height	30.0 cm
Package 3 width	30.0 cm
Package 3 length	40.0 cm
Package 3 weight	13.567 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.0471304713
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0335457955
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0012304623
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	2.0664038277
Carbon footprint of the use phase [b2, b3, b4, b6]	2 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.0398786788
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	4.1881892356
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	ENVEOLI1103009EN
Take-back	No
Warranty (in months)	18
