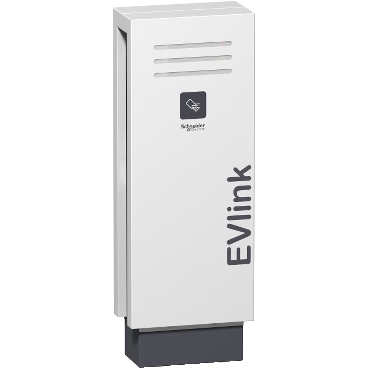

EVlink, Parking Floor Standing EV Charging Station, 7KW, 1xT2, Shutter

Home ProductsElectric Vehicle ChargingEVlinkParking Floor Standing EV Charging Station

EVlink, Parking Floor Standing EV Charging Station, 7KW, 1xT2, Shutter

Item Number: EVF2S7P04R

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width413 mm

Height icon

Height1146 mm

Depth icon

Depth220 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

EVlink

Product or component type

charging station

Colour

front: white (RAL 9003)|side: grey (RAL 7016)

Sustainable offer status

Green Premium product

Physical

Mounting mode

floor-standing

Socket number

1

Control type

1 red push-button, function: stop|1 green illuminated push-button, function: start/unlock flap

Local signalling

on charge: 1 LED (green) (flashing) on side|available: 1 LED (green) on front|reserved: 1 LED (orange) on front|not operational: 1 LED (red) on front

Communication port protocol

OCPP 1.6

Function available

postponed charge|charge detail records|user privilege configuration|load management|diagnosis capabilities|circuit breaker status

Standards

IEC 61851-1|IEC 61851-22

Product certifications

CB|ZE Ready|EV Ready|CE

Height

1146 mm

Width

413 mm

Depth

220 mm

Net weight

50 kg

Ip degree of protection

IP54 off load conforming to IEC 61851-1|IP54 on load conforming to IEC 61851-1

Ik degree of protection

IK10 charging station conforming to IEC 61851-22|IK10 socket-outlet conforming to IEC 61851-22

Ambient air temperature for operation

-30...50 °C conforming to IEC 61851...22

Ambient air temperature for storage

-40...80 °C

Relative humidity

0...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1608002EN

Circularity profile

ENVEOLI1608002EN

Others

Commercial status history

SESA301466 | Tue Jan 16 00:43:00 EST 2024 | From Import Local | From 18 to 19

Package 1 bare product quantity

1

Product name

EVlink parking

Device short name

EVF2

Poles description

1P + N for control circuit|1P + N for power circuit

Offer type

standard

[us] rated supply voltage

230 V AC 50/60 Hz power circuit|220...240 V AC 50/60 Hz control circuit

Earthing system

TT|TN|IT

Socket outlet type

T2S

Socket-outlet type

right: T2 with shutter / silver plated contacts

Maximum supply current

32 A for T2 with shutter

Nominal output power

7 kW for T2 with shutter

Access control system

badge RFID conforming to ISO/IEC 14443 A and B|badge RFID conforming to ISO/IEC 15693|badge RFID conforming to ISO 14443-4 A

Operating mode

standalone|clustered architecture

Web server

embedded

Ethernet service

configuration via web server

Operating altitude

0...2000 m conforming to IEC 61851-22

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

38 cm

Package 1 width

45 cm

Package 1 length

128 cm

Package 1 weight

40.5 kg
