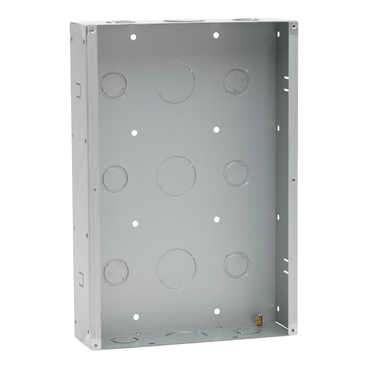

PDL General Accessories Switch Panel Wall Box 24-Way, Multi-Gang
Item Number: PDL534B24
Specifications
Design
Range of product
PDL General Accessories
Product or component type
cover plate
Surface finish
matt
Physical
Quantity per set
set of 1
Installation direction
- horizontal
- vertical
Height
200 mm
Width
292 mm
Depth
60 mm
Cable entry
- 2 knock-out side of 38.5-38.5 mm diameter
- 4 knock-out side of 1.19-1.19 mm diameter
- 3 knock-out bottom of 38.5-38.5 mm diameter
- 6 knock-out bottom of 1.19-1.19 mm diameter
Ambient air temperature for operation
-10...40 °C
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
galvanised steel
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Mounting location
recessed
Number of modules
1
Number of ways
4 ways
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6 cm
Package 1 width
20 cm
Package 1 length
29 cm
Package 1 weight
0.942 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
