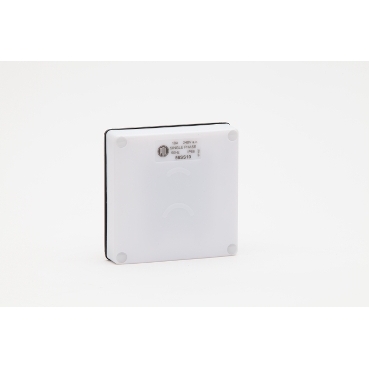

56 Series Sunset Switch Photoelectric 10A 240V No Enclosure IP66, Grey
Item Number: PDL56SS10LE
Specifications
Design
| Range of product | 56 Series™ |
|---|---|
| Product or component type | switch |
| Colour tint | grey and opal |
| Surface finish | gloss |
Physical
| Control type | electronic |
|---|---|
| Installation direction |
|
| Width | 95 mm |
| Height | 95 mm |
| Depth | 43 mm |
| Rated current | 10 A |
| [ue] rated operational voltage | 230/240 V |
| Mounting mode | surface mounted |
| Ip degree of protection | IP66 |
| Ambient air temperature for operation | -10...45 °C |
| Quantity per set | set of 4 |
| Type of packing | carton |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120809EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PVC + PC (polycarbonate) |
|---|
