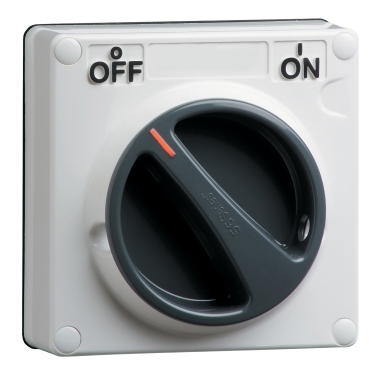

56 Series Switch 32A 500V 2-Pole IP66 | Grey

Item Number: PDL56SW232LEGY

Grey 1 PCE 1

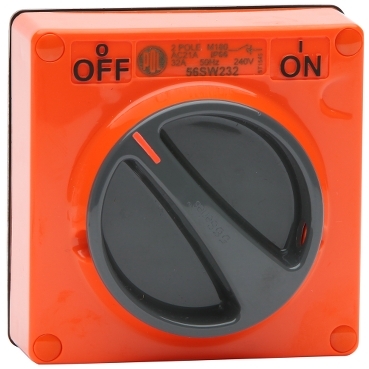

Chemical Resistant Orange 1 PCE 1

Where To Buy

Datasheet

Download

Product Dimensions

Width95 mm

Height95 mm

Depth62 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175082504	GY
4	BB1	9416175251511	GY
8	CAR	19416175082501	GY
1	PCE	9416175091308	RO
4	CRT	9416175251528	RO
8	CAR	19416175091305	RO

Specifications

Design

Range of product	56 Series™
Range	56 Series
Product brand	Clipsal
Product or component type	rotary switch
Device application	control
Colour tint	grey
Surface finish	gloss

Physical

Quantity per set	set of 4
Type of packing	carton
Number of poles	2
Control type	rotary
Installation direction	vertical
Width	95 mm
Height	95 mm
Depth	62 mm
Rated current	32 A
[ue] rated operational voltage	415 V
Number of gangs	1 gang
Mounting mode	surface mounted
Fixing center	84 x 84 mm
Ip degree of protection	IP66
Ambient air temperature for operation	-40...55 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1208009EN
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Motor m-rating as3133	M180
Network frequency	50 Hz
Network number of phases	3 phases
Cable cross section	1...16 mm²
Main colour tint	grey
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6 cm
Package 1 width	9.5 cm
Package 1 length	9.5 cm
Package 1 weight	230 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.2297750779145011
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.06896294845571181
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.042217331012998495
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	5.835434666666665
Carbon footprint of the use phase [b2, b3, b4, b6]	6 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.5638073345750454
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	7.740197358624922
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
