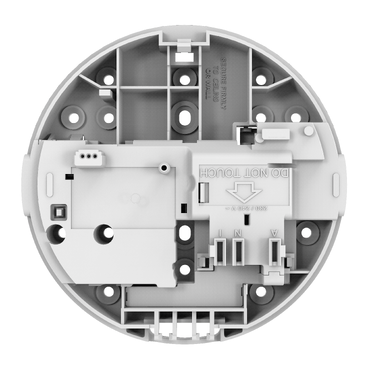

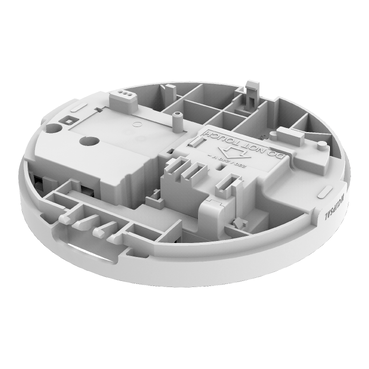

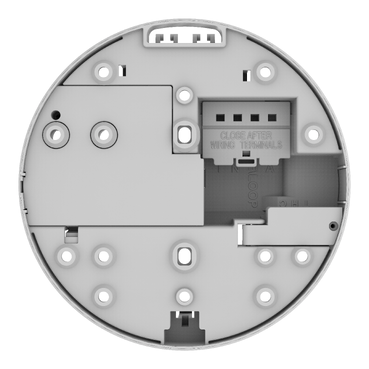

Clipsal - Smoke Alarms Smoke Alarm Surface Mounting Base 220-240 V a.c. Mains Power, Wireless Interconnect, Gen 2

Item Number: 755RFB2

The Fire Tek smoke alarm Wireless Mounting Base allows up to 40 smoke alarms to be wirelessly interconnected. This is useful when adding a new alarm to an existing group, or if it is challenging to run interconnected cables. It has a remote test/hush input to allow testing or silencing from a momentary wall switch.

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Fire Tek

Product brand

Clipsal

Product or component type

mounting base

Device application

mounting

Sustainable offer status

Green Premium product

Physical

[ie] rated operational current

60 mA maximum

Transmission frequency

433.42 MHz

Operating distance

30 m indoor use line of sight|100 m in free field

Remote control type

Dry contact momentary switch for test/hush function with max. cable length 20 m

Connections - terminals

For line: screw terminal with 2 x 1.5 mm² wiring capacity |For neutral: screw terminal with 2 x 1.5 mm² wiring capacity |For earth loop: screw terminal with 2 x 1.5 mm² wiring capacity |For interconnect: screw terminal with 2 x 1.5 mm² wiring capacity |For TEST: screw terminal with 2 x 1.5 mm² wiring capacity |For hush: screw terminal with 2 x 1.5 mm² wiring capacity |For common: screw terminal with 2 x 1.5 mm² wiring capacity

Local signalling

flashing: 1 LED (red) 10 s for low battery

Type of installation

indoor

Fixing center

84 mm

Ambient air temperature for operation

0...45 °C

Relative humidity

5...95 %

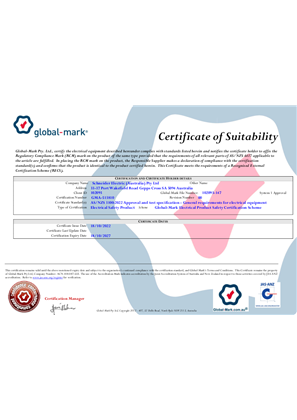

Product certifications

Activfire|RCM

Standards

AS/NZS 60065|AS/NZS 60950.1|AS/NZS 4268

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

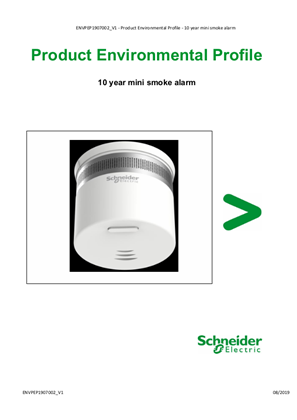

Environmental disclosure

ENVPEP1907002EN

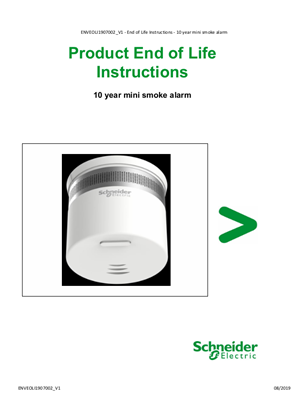

Circularity profile

ENVEOLI1907002EN

Others

Package 1 bare product quantity

1

[us] rated supply voltage

220...240 V AC 50 Hz

Backup type

battery

Battery type

sealed rechargeable

Battery life

10 year(s)

Number of devices

40 for wireless alarm|40 for wired alarm wired over <= 150 m

Time delay range

2 min (pairing)

Diameter

140 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

14.5 cm

Package 1 width

3.3 cm

Package 1 length

14.5 cm

Package 1 weight

184.0 g
Show all specifications

Frequently Asked Questions

hide show

Can the Wiser smoke alarm interconnect with my existing alarms?

The Wiser Smoke alarm (CLP599WSAL) has 433MHz RF and Zigbee 3.0 tech included, meaning they are compatible with Clipsal Fire Tek® Wireless smoke alarms 755LPSMA4 and 755RFB2 bases to allow simple upgrade opportunities
Wiser Smoke Alarm


How do I delete the pairing on a 755RFB2 Smoke Alarm Mounting Base with Wireless Interconnect ?

Follow the steps below to delete the pairing on 755RFB2,
  • Make sure all bases are powered ON in normal mode.
  • Press RF button 3 times in 2 seconds on the unit. RF LED will light on.
  • Press and hold RF button for at least 4 seconds, RF LED will flash 5 times to confirm the success.
Wireless interconnection pairing - 755RFB2.png

How do you Interconnect a 755RFB2 smoke alarm bases with a 755LPSMA4 smoke alarm?

See the below "How to video".

The part number for the products seen in this video is a 755RFB2 base and a 755LPSMA4 smoke alarm.

For further information please visit
Smoke alarm: https://www.clipsal.com/products/detail?CatNo=755LPSMA4&tab-document-1=1
Wireless base: https://www.clipsal.com/products/detail?CatNo=755RFB2&tab-document-1=1
