Zen White 1 PCE 1

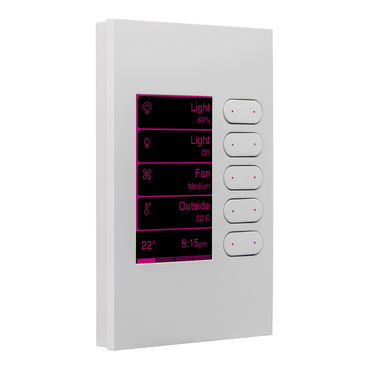

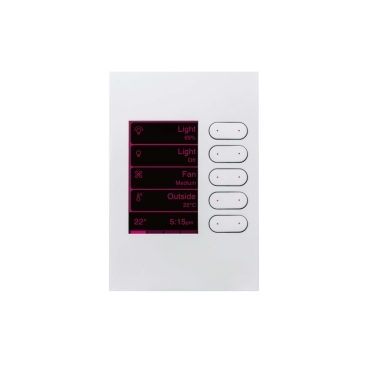

C-Bus Wall Plate Saturn Zen Enhanced Dynamic Labelling Technology, 5 key, A Series | Zen White

Zen White 1 PCE 1

Width83 mm

Height123 mm

Embedding depth23.5 mm

See full specifications

Qty	UoM	EAN	Colour
			-
			-
			-

Qty	UoM	EAN	Colour
1	PCE	9311554774141	ZW
8	CAR	19311554774148	ZW

Specifications

Product brand

Product or component type

Device application

cover plate: zen white
grid: white

Product compatibility

LAN cable Cat. 5e

Provided equipment

mounting plate
flying lead

Control type

5 x push-button dual-action

Local signalling

status: LED (tri-colour) on push-button

Function of module

proximity sensor monitoring wake-up

Communication port protocol

C-Bus - 2 wires

Connector type

mini USB port (rear)
socket (rear) for C-Bus

Function available

firmware update by USB

Clamping connection capacity

0.2...1.5 mm²

Fixing mode

Mounting support

Embedding depth

Ip degree of protection

Ambient air temperature for operation

Product certifications

Mercury free

Rohs exemption information

Environmental disclosure

ENVPEP120702EN_V1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Eu rohs directive

Compliant By Exemption

Material

Average percentage of recycled plastic content

Package 1 bare product quantity

Legacy weee scope

Weee label

Weee applicability

Weee exclusion rationale

Component not in scope – non independent function

Outside of Europe

Warranty duration(in months) bmecat

Product name

C-Bus Saturn Zen

Switch application

lighting
timer
audio
blind control
fan speed control
scene control
on/off switching
shutter control
dimming up/down control
page navigation

Local display

backlit LCD display

Display type

colour TFT display

Display size

Messages display capacity

up to 4 pages

Information displayed

load type
temperature
power
date
time
operating mode

Number of outputs

16 in 4 page option
5 in 1 page option

[us] rated supply voltage

15...36 V: DC

Maximum supply current

User language

multi-language

Electrical connection

Unit type of package 1

Number of units in package 1

Package 1 height

Package 1 width

Package 1 length

Package 1 weight

Unit type of package 2

Number of units in package 2

Package 2 height

Package 2 width

Package 2 length

Package 2 weight

Unit type of package 3

Number of units in package 3

Package 3 height

Package 3 width

Package 3 length

Package 3 weight

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

44 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

2.618720591371099

Carbon footprint of the manufacturing phase [a1 to a3]

3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0771557715544815

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.013585595991186304

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

38.967499999999994

Carbon footprint of the use phase [b2, b3, b4, b6]

39 kg CO2 eq.

Sustainable packaging

Carbon footprint of the end-of-life phase [c1 to c4]

0.15680019901912018

Carbon footprint of the end-of-life phase [c1 to c4]

0.2 kg CO2 eq.

Pvc free

Halogen-free status

Halogen free product

Take-back

Product contributes to saved and avoided emissions

Removable battery

Total lifecycle carbon footprint

44.2739048475371

Average percentage of recycled metal content

Packaging made with recycled cardboard

Packaging without single use plastic

China rohs label

Halogen-free status

Halogen free product

Pvc free

End of life manual availability

ENVEOLI1207002EN

Take-back

Warranty (in months)

Documents & downloads

All
Product Brochures
Environmental Disclosure
End of Life Manual

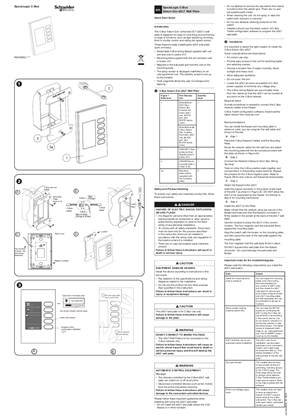

Installation Instruction
