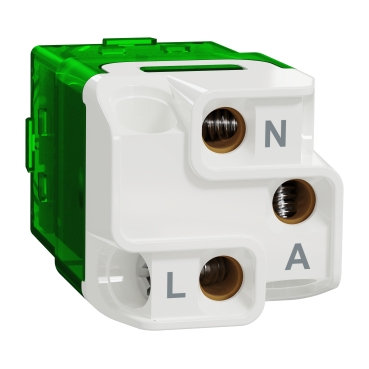

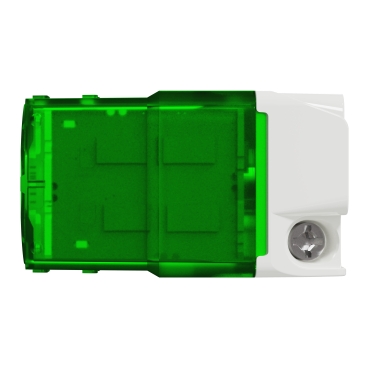

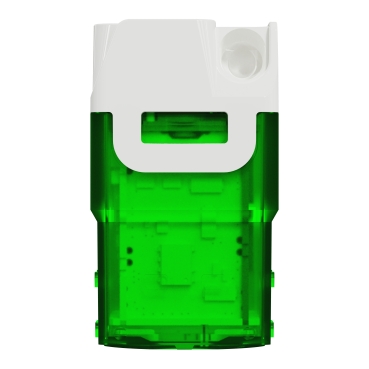

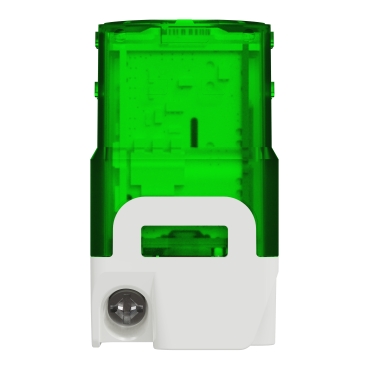

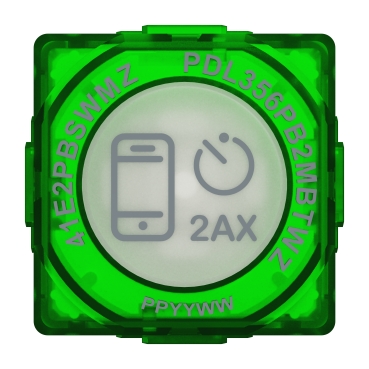

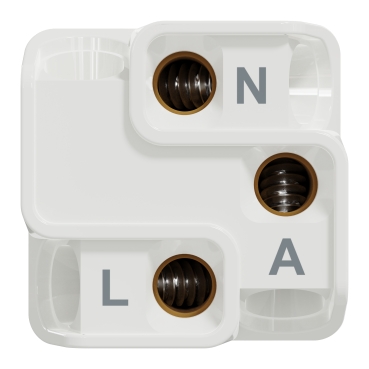

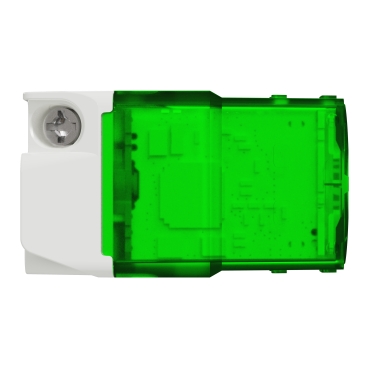

Iconic Wiser Connected Smart Switch Zigbee Default 2AX 240V, 300 Series | Vivid White
Item Number: PDL356PB2MBTZ-VW
The Iconic Push button Wiser Connected Smart Switch 2 AX offers flexible installation options and is ideal for controlling lighting and exhaust fans. It can be controlled through the push button on the wall, remotely using the Wiser by SE app or voice command. With default Zigbee mode it can connect to the Wiser Hub for full home control and automation functions.
Specifications
Design
Product brand
Range
Product or component type
Colour tint
Surface finish
Physical
Device presentation
Number of rocker
Actuator
Load type
- dimmable LED lighting driver: 2 A
- LED lighting driver (non-dimmable): 2 A
- electronic transformer: 2 A
- medium voltage halogen lamp: 2 A
- linear fluorescent ballast: 2 A
- inductive: 2 A (cos phi =0.6 )
- resistive: 2 A
- motor: 1 A
[ue] rated operational voltage
Protection type
- over temperature protection
- thermal protection
Local signalling
Control type
- push-button
- by mobile application
Communication network type
Wiring configuration
Mounting support
Device mounting
Fixing mode
Fixing center
Type of installation
Embedding depth
Depth
Width
Height
Ip degree of protection
Relative humidity
Standards
- AS/NZS 60669.2.1 safety
- AS/NZS 60669.2.1 EMC
- AS/NZS 4268 radio
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
Material
Material
Others
Package 1 bare product quantity
Concentrator compatibility
Mobile app name
Technology type
Software name
Technology type
- Zigbee default
- bluetooth low energy
Main colour tint
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
Product Brochures
-
Technical Data Catalogues
-
Installation Instruction
-
Environmental Disclosure
-
End of Life Manual
-
System User Guide
-
Operating Manuals
-
Certificates (MSDS)
Frequently Asked Questions
How do I convert Iconic Wiser™ Connected Switches or Dimmers from Zigbee to BLE
Hide ShowSee below video
I want to put in two-way switching but can’t run the cables between the mechanisms. Can I achieve wireless two-way switching with Wiser Zigbee?
Hide ShowYou need to create two automations for a 2-way:
- when switch A and switch B are ON, turn switch A and switch B ON
- when switch A and switch B are OFF, turn switch A and switch B OFF
This can be expanded to 3-way, 4-way etc by simply adding the other switches into the respective ON and OFF automations.
Where can I find the files and how to update the firmware on my Zigbee Wiser devices when I don’t have the Wiser Hub?
Hide ShowWithout the Wiser Hub you will be unable to connect Wiser devices via Zigbee in Wiser by SE and therefore will be unable to update your devices.
We do not offer any other methods for updating firmware on the devices.
What is the Standby Power of my Wiser devices?
Hide ShowWiser Micro Module Dimmer - CLP5010WDZ/PDL5010WDZ - 0.4 W
Wiser Micro Module Blind - CLP5015WBZ/PDL5015WBZ - 0.4 W
Wiser Hub - CLP501902/PDL501902 - 0.2 W
Bluetooth 2AX - 41E2PBSWM-VW/PDL356PB2MBTW-VW - 0.25 W
Bluetooth 10AX - 41E10PBSWM-VW/PDL356PB10MBTW-VW - 0.20 W
Bluetooth Dimmer - 41EPBDWCLM-VW/PDL354PBDMBTW-VW - 0.50 W
Bluetooth Socket - 3025CSG/PDL395CSG - 0.30 W
ZigBee 2AX - 41E2PBSWMZ-VW/PDL356PB2MBTZ-VW - 0.25 W
ZigBee 10AX - 41E10PBSWMZ-VW/PDL356PB10MBTZ-VW - 0.20 W
ZigBee Dimmer - 41EPBDWCLMZ-VW/PDL354PBDMBTZ-VW - 0.50 W
ZigBee Socket - 3025CSGZ/PDL395CSGZ - 0.30 W
How Can I Change a Wiser Mechanism from Zigbee to Bluetooth
Hide ShowTo swap a Zigbee enabled switch to Bluetooth, press the switch 4 times and hold on the 4th press for 20+ seconds.
When holding the button in at the 10 second mark a slow flashing red led should be visible, releasing at this point would be a factory reset. Continue to hold until the red led starts flashing rapidly at the 20 second mark and then release.
This method of changing the mode of the mechanism will work Zigbee to Bluetooth and also Bluetooth to Zigbee.
