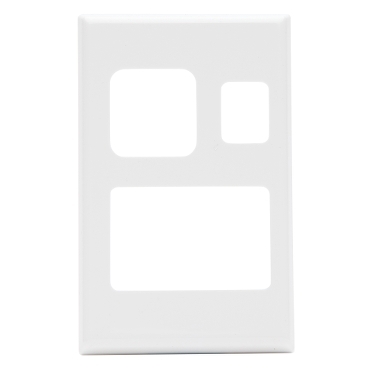

600 Series Cover Plate Switched Socket RCD | White

Item Number: PDL691RCDCWH

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

cover plate

Colour tint

white

Product destination

  • 1 gang vertical
  • 1 gang vertical RCD protected switched socket

Surface finish

gloss

Physical

Quantity per set

set of 10

Type of packing

carton

Installation direction

vertical

Width

74 mm

Height

118 mm

Mounting mode

surface mounted

Ambient air temperature for operation

-10...40 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.2 cm

Package 1 width

7.5 cm

Package 1 length

12 cm

Package 1 weight

15 g

Total lifecycle carbon footprint

0.2 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.17132702349864398

Carbon footprint of the manufacturing phase [a1 to a3]

0.2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.001935332898305084

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.00020567232355932205

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.0036199055801694915

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.01100992167101695

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.1880978559716948

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
