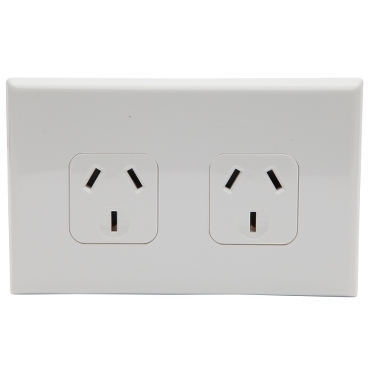

600 Series Double Socket Unswitched 10A Horizontal | White

Item Number: PDL693/2WH

White 1 PCE 1

Socket outlet assembly for horizontal installations. Separate twin un-switched socket bases. 600 Series cover and socket grid are included. PDL 600. Colour: White Rated current: 10A Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175143052	WH
10	BB1	9416175259968	WH
100	CAR	19416175143059	WH

Specifications

Design

Range of product	600 Series
Product or component type	socket-outlet
Surface finish	gloss

Physical

Socket number	2
Rated current	10 A
Installation direction	horizontal
Width	118 mm
Height	74 mm
[ue] rated operational voltage	250 V 50 Hz
Device mounting	surface
Number of gangs	2 gangs
Fixing center	84 mm
Ambient air temperature for operation	-10...40 °C
Quantity per set	set of 10
Type of packing	carton
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120506EN_V2
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Cable cross section	3 x 2.5...2.5 mm²
Cut-out dimensions	50 mm
Main colour tint	white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3 cm
Package 1 width	7.5 cm
Package 1 length	12 cm
Package 1 weight	0.118 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.3477725848559996
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.015224618799999994
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0016179556120000005
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.028476590564000006
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.08661138381200004
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.4797031336439987
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
