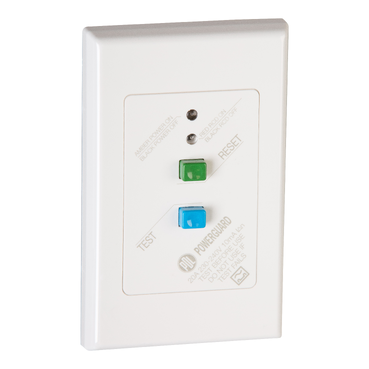

600 Series Double Switched Socket 20A, RCD, 10mA, Trip | White

Item Number: PDL696RCD10WH

White 1 PCE 1
Red 1 PCE 1

RCD flush plate. 10mA trip. PDL 600. Colour: White Rated current: 20A. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175159930	WH
10	CAR	19416175159937	WH
1	PCE	9416175220531	RD
10	CAR	19416175220538	RD

Specifications

Design

Range of product	600 Series
Product or component type	residual current device
Surface finish	gloss

Physical

Control type	push-button
Installation direction	vertical
Width	74 mm
Height	118 mm
Rated current	20 A
[ue] rated operational voltage	230/240 V
Number of poles	2
Mounting mode	surface mounted
Fixing center	84 mm
Quantity per set	set of 1
Type of packing	carton
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1607004_V2-EN
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Average percentage of recycled plastic content	0 %
Network frequency	50 Hz
Network number of phases	1 phase
Cable cross section	3 x 2.5...2.5 mm²
Main colour tint	white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.0 cm
Package 1 width	7.7 cm
Package 1 length	11.8 cm
Package 1 weight	181.0 g
Total lifecycle carbon footprint	11 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.4422501214193104
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.05189528616151567
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.036804111498255326
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	9.4106
Carbon footprint of the use phase [b2, b3, b4, b6]	9 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.424675319656588
Carbon footprint of the end-of-life phase [c1 to c4]	0.4 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	11.36622483873567
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
Take-back	No
Warranty (in months)	18
