600 Series Double Switched Socket 20A, RCD, 30mA, Trip | White

Item Number: PDL696RCD30WH

White 1 PCE 1
Black 1 PCE 1

RCD flush plate. 30mA trip. Colour: White Rated current: 20A. Operating voltage 240V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Where To Buy

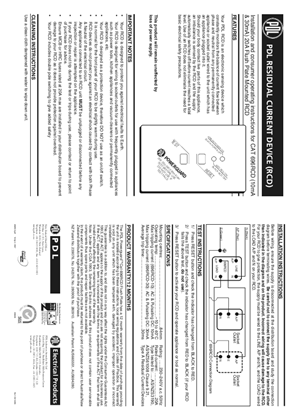

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175143298	WH
10	CAR	19416175143295	WH
1	PCE	9416175153747	BK

Specifications

Design

Range of product	600 Series
Product or component type	residual current device
Surface finish	gloss

Physical

Control type	push-button
Installation direction	vertical
Width	74 mm
Height	118 mm
Rated current	20 A
[ue] rated operational voltage	230/240 V
Number of poles	2
Mounting mode	surface mounted
Fixing center	84 mm
Quantity per set	set of 1
Type of packing	carton
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1607004_V2-EN
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Network frequency	50 Hz
Network number of phases	1 phase
Cable cross section	3 x 2.5...2.5 mm²
Main colour tint	white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.0 cm
Package 1 width	7.7 cm
Package 1 length	11.8 cm
Package 1 weight	183.0 g
Total lifecycle carbon footprint	11 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.458186586849358
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.052468714737886
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.03721078676342942
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	9.4106
Carbon footprint of the use phase [b2, b3, b4, b6]	9 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.42936786462516907
Carbon footprint of the end-of-life phase [c1 to c4]	0.4 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	11.387833952975843
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
Take-back	No
Warranty (in months)	18
