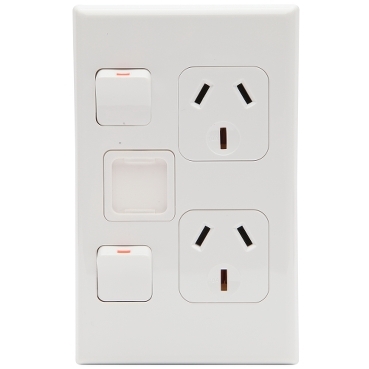

600 Series Double Switched Socket and Circuit Identification Vertical | White

Qty	UoM	EAN	Colour
1	PCE	9416175192357	WH
5	BB1	9416175259951	WH
15	CAR	29416175192351	WH

Specifications

Design

Physical

Control type	rocker
Installation direction	vertical
Width	74 mm
Height	118 mm
[ue] rated operational voltage	250 V 50 Hz
Device mounting	surface
Fixing center	84 mm
Ambient air temperature for operation	-10...40 °C
Quantity per set	set of 5
Type of packing	carton
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120506EN
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Cable cross section	3 x 2.5...2.5 mm²
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.5 cm
Package 1 width	7.0 cm
Package 1 length	11.5 cm
Package 1 weight	96.0 g
Unit type of package 2	CAR
Number of units in package 2	15
Package 2 height	7.5 cm
Package 2 width	19 cm
Package 2 length	44 cm
Package 2 weight	1.5 kg
Package 3 height	7.5 cm
Sustainable packaging	No
China rohs label	5
End of life manual availability	N/A
Warranty (in months)	18
