600 Series Electronic Timer Switch 15A 7 days/24 hr Timing, White

600 Series Electronic Timer Switch 15A 7 days/24 hr Timing, White

Item Number: PDL646E7

Time scheduler that is designed to switch on a load for a selected time period. 600 Series module. Suitable for PDL 600. Colour: White Rated current: 15A. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

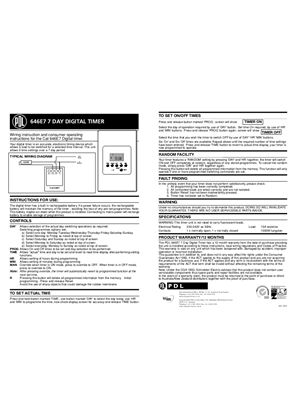

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

time switch

Colour tint

white

Surface finish

gloss

Physical

Control type

digital

Installation direction

vertical

Length

118 mm

Width

74 mm

Rated current

15 A

[ue] rated operational voltage

230/240 V

Number of gangs

1 gang

Mounting mode

surface mounted

Fixing center

84 mm

Ambient air temperature for operation

-10...40 °C

Quantity per set

set of 1

Type of packing

carton

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1308010EN

Circularity profile

ENVEOLI1308010EN

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Nominal power

1 kW

Network frequency

50 Hz

Number of ways

1 way

Cable cross section

2 x 2.5...2.5 mm²|4 x 1.5...1.5 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.0 cm

Package 1 width

7.7 cm

Package 1 length

11.8 cm

Package 1 weight

156.0 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

1.2889726807
