Home ProductsSwitches and Sockets600 SeriesModule Buzzer

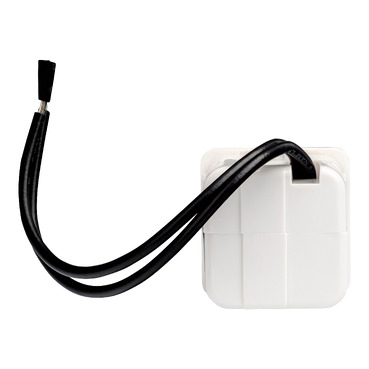

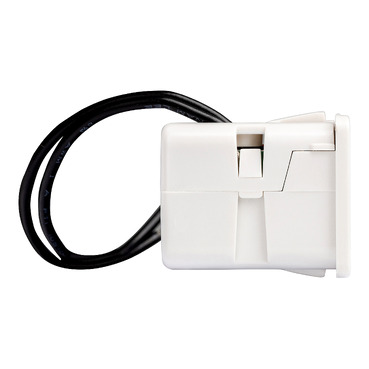

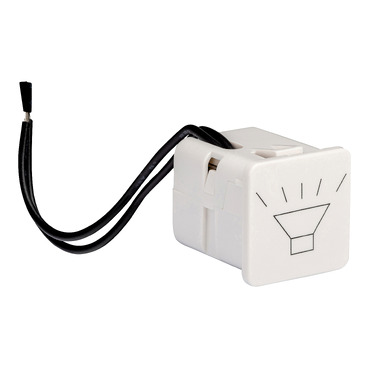

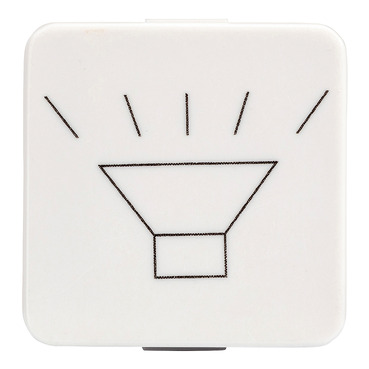

600 Series Module Buzzer 230-240VAC, Suits 600 Series

Item Number: PDL1588M

1 PCE 1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175093821	-
20	BB1	9416175258213	-
60	CAR	19416175093828	-

Specifications

Design

Range of product	600 Series
Product or component type	buzzer
Colour tint	white
Surface finish	gloss

Physical

Installation direction	horizontal vertical
[ue] rated operational voltage	230/240 V
Mounting mode	front
Quantity per set	set of 20
Type of packing	carton
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2103014_V1
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Package 1 bare product quantity	1
Legacy weee scope	In
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Network frequency	50 Hz
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3 cm
Package 1 width	2.5 cm
Package 1 length	10 cm
Package 1 weight	22 g
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.00013495500335795836
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00000283850235057085
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	4.7138213566152e-7
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.5704
Carbon footprint of the use phase [b2, b3, b4, b6]	0.6 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.00000273433848220282
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.0005623827051712559
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
Take-back	No
Warranty (in months)	18

Show all specifications
