Home ProductsSwitches and Sockets600 SeriesModule

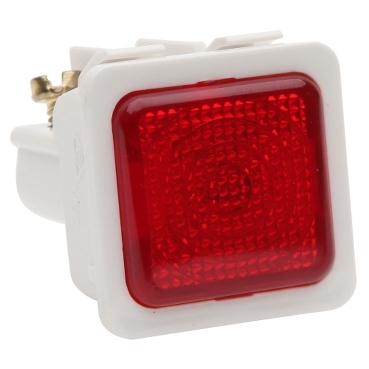

600 Series Module Illuminated, with Red Neon | White

Item Number: PDL610MNRDWH

White 1 PCE 1

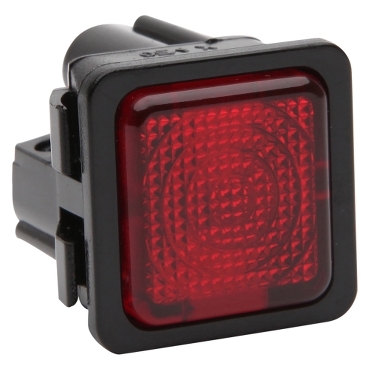

Black 1 PCE 1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175025297	WH
20	BB1	9416175258770	WH
60	CAR	19416175025294	WH
1	PCE	9416175025099	BK
20	BB1	9416175258763	BK
60	CAR	19416175025096	BK

Specifications

Design

Range of product	600 Series
Product or component type	switch
Surface finish	opaque

Physical

Installation direction	vertical
Length	23 mm
Width	23 mm
Depth	25 mm
[ue] rated operational voltage	240/250 V
Number of gangs	1 gang
Mounting mode	front
Number of terminals	3
Quantity per set	set of 20
Type of packing	crate
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2103014_V1
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Light source colour	red
Network number of phases	1 phase
Cut-out dimensions	25 mm
Main colour tint	white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.5 cm
Package 1 width	2.5 cm
Package 1 length	2.5 cm
Package 1 weight	10 g
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.00006134318334452653
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00000129022834116857
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	2.1426460711887e-7
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.5704
Carbon footprint of the use phase [b2, b3, b4, b6]	0.6 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.00000124288112827401
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.0002556285023505709
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Pvc free	Yes
Take-back	No
Warranty (in months)	18
