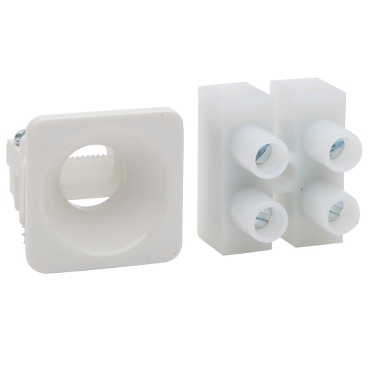

600 Series Module Permanent Connection 16A | White
Item Number: PDL651M2WH
Permanent connection module. PDL 600. Colour: White Rated current: 16A. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Datasheet
Close
Specifications
Design
| Range of product | 600 Series |
|---|---|
| Product or component type | socket |
| Surface finish | gloss |
Physical
| Installation direction | vertical |
|---|---|
| Length | 23 mm |
| Width | 23 mm |
| [ue] rated operational voltage | 230/240 V |
| Number of gangs | 1 gang |
| Number of poles | 1 |
| Mounting mode | front |
| Ip degree of protection | IP56 |
| Ambient air temperature for operation | -10...40 °C |
| Connections - terminals | screw terminal |
| Quantity per set | set of 20 |
| Type of packing | carton |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2103014_V1 |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
