600 Series Module Switch 32A 20AX 1P OVEN

600 Series Module Switch 32A 20AX 1P OVEN | WH

Item Number: PDL680M32OWH

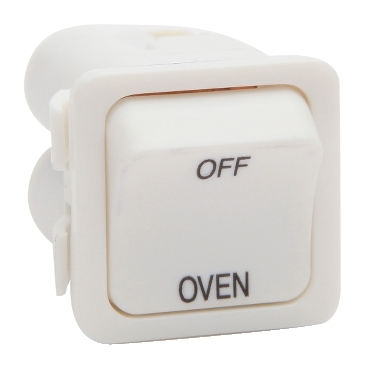

Oven Switch mechanism for 1-gang installations. Single-pole switch. Switch is marked OVEN-OFF. 600 Series mechanism. Suitable for PDL 600. Colour: White Rated current: 32A / 20AX. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Sustainable offer status

Green Premium product

Physical

Control type

rocker

Installation direction

vertical

Length

23 mm

Width

23 mm

Rated current

20 AX|32 A

[ue] rated operational voltage

250 V

Number of gangs

1 gang

Number of poles

1

Mounting mode

front

Ambient air temperature for operation

-10...40 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1607003EN

Circularity profile

N/A

Material

Material

PA (polyamide)

Others

Package 1 bare product quantity

1

Network type

AC

Motor m-rating as3133

M180

Cable cross section

2 x 6 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.5 cm

Package 1 width

2.5 cm

Package 1 length

2.5 cm

Package 1 weight

19.385 g
