600 Series Module Timer Scheduler Rotary, 8AX | White
Item Number: PDL646R24WH
Time scheduler that is designed to switch on a load for a selected time period. 600 Series module. Suitable for PDL 600. Colour: White Rated current: 8AX. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Datasheet
Close
Specifications
Design
| Range of product | 600 Series |
|---|---|
| Product or component type | time switch |
| Colour tint | white |
| Surface finish | gloss |
Physical
| Control type | rotary |
|---|---|
| Installation direction | vertical |
| Length | 118 mm |
| Width | 74 mm |
| Rated current |
|
| [ue] rated operational voltage | 230/240 V |
| Number of gangs | 1 gang |
| Mounting mode | surface mounted |
| Fixing center | 84 mm |
| Ambient air temperature for operation | -10...40 °C |
| Ip degree of protection | IP3x |
| Quantity per set | set of 1 |
| Type of packing | carton |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1308010EN |
| China rohs regulation | X |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
Documents & downloads
Filter items
-
All
-
Product Brochures
-
Environmental Disclosure
-

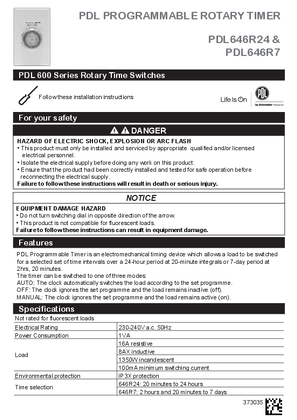

Installation Instruction
-
Declaration of Conformity (Sustainability)
ZIP
PDL646R24BK EU RoHS Declaration
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
PDL646R24BK EU RoHS Declaration
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
PDL646R24WH EU RoHS Declaration
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
PDL646R24WH EU RoHS Declaration
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
