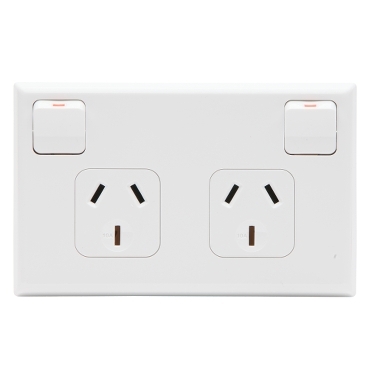

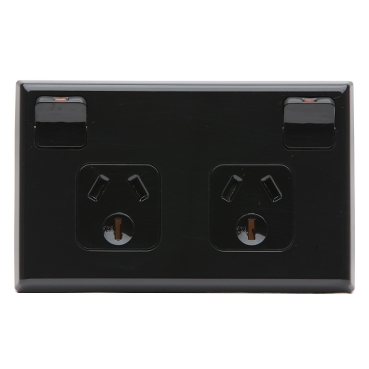

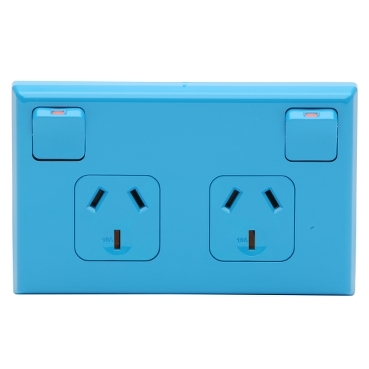

600 Series Switched Socket 10A Horizontal 250V

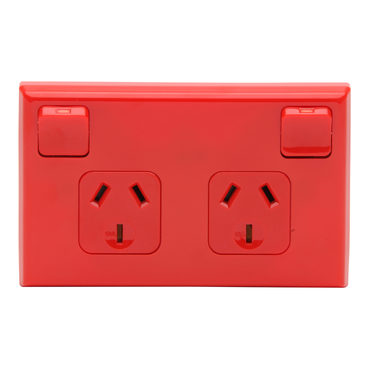

600 Series Switched Socket 10A Horizontal 250V | Red

Item Number: PDL695RD

Socket outlet assembly for horizontal installations. Twin switched socket. 600 Series cover and socket grid are included. PDL 600. Colour: White Rated current: 10A. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

switched socket

Colour tint

white

Surface finish

gloss

Sustainable offer status

Green Premium product

Physical

Control type

rocker

Installation direction

horizontal

Width

118 mm

Height

74 mm

[ue] rated operational voltage

230/240 V 50 Hz

Device mounting

surface

Number of gangs

2 gangs

Fixing center

84 mm

Ambient air temperature for operation

-10...40 °C

Quantity per set

set of 5

Type of packing

carton

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Cable cross section

3 x 2.5...2.5 mm²

Cut-out dimensions

50 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

7.5 cm

Package 1 length

11.5 cm

Package 1 weight

102 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

120 cm

Package 2 width

153 cm

Package 2 length

160 cm

Package 2 weight

1.2 kg
Show all specifications
