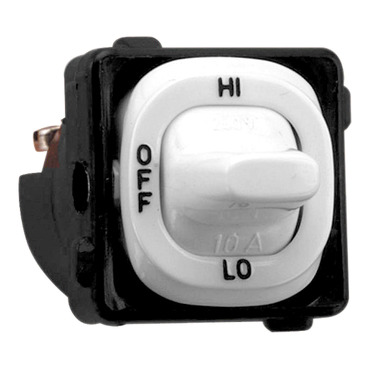

Mechanisms, Switch Mechanism, 10A, 3 Position, LO - Off - HI

Mechanisms, Switch Mechanism, 10A, 3 Position, LO - Off - HI Black

Item Number: 39M-BK

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series|Series 30

Product brand

Clipsal

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element

Control type

rotary knob

Number of poles

1

Device mounting

flush

Number of rocker

1

Local signalling

without

[ue] rated operational voltage

250 V AC

Rated current

10 A

Load type

fluorescent lamp 10 A|LEDi lamp 100 W

Marking

HIGH-OFF-LOW

Fixing mode

clip-in

Switch function

1-pole

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Marking location

marking on surface

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.3 cm

Package 1 width

2.2 cm

Package 1 length

3.2 cm

Package 1 weight

15.2 g
Show all specifications

Frequently Asked Questions

hide show

Is there an Auto-Off-Manual three position switch available for Saturn Zen?

You will need to use one of the Saturn Zen Communication Plates and a 30 series Auto-Off-Man mechanism.
The part numbers are:

Z4031VH

39MAOM

Z4031VH - Grid And Plate Assembly 1 Gang Saturn ZEN39MAOM - Switch, 1 Pole, 250VAC, 10A, Auto/Off/Man
